Custom Corner Five — HOGTOWN SPOKES

NEW!

Price Depends on the Specs Chosen - Please Inquire (LEAD TIME 5-6 business weeks)

[PRICING FROM $1849.99-2149.99 FOR THE PAIR]

Build Name: “Oos SP R/G 24 (2.0)” - Hogtown Splined Ratchet Signature Wheels

Your Choice From Custom List

ALL ITEMS DIVIDED WITH OR LISTED IN RED OFFER CHOICE

>>SPECS BASED AROUND RIDER WEIGHING UNDER 230 LBS IN RIDING GEAR, MAXIMUM. OTHER SPECS WILL BETTER SUIT HEAVIER RIDERS<<

Front:

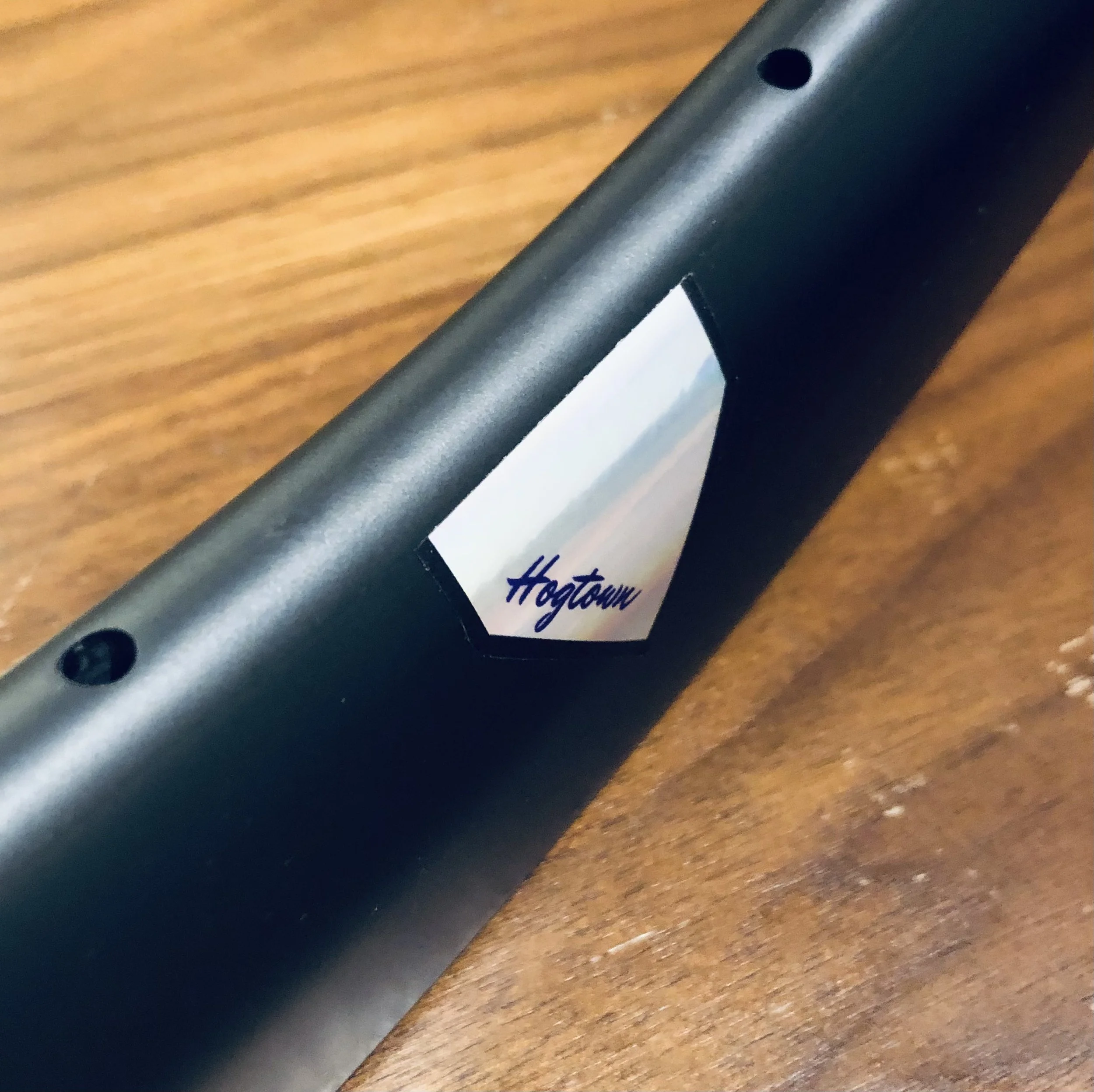

24-Hole High-modulus Carbon Fibre 700c Rim. Graphic-free rim for a minimalistic appearance. Hooked, tubeless rim features a sturdy blend of Toray T-700/T-800 Japanese-origin Carbon Fibres. Symmetrical design with aggressive angle-drilling for better spoke articulation left and right. External width 27.9 mm/internal 21 mm/45 mm aero depth. UD matte layup

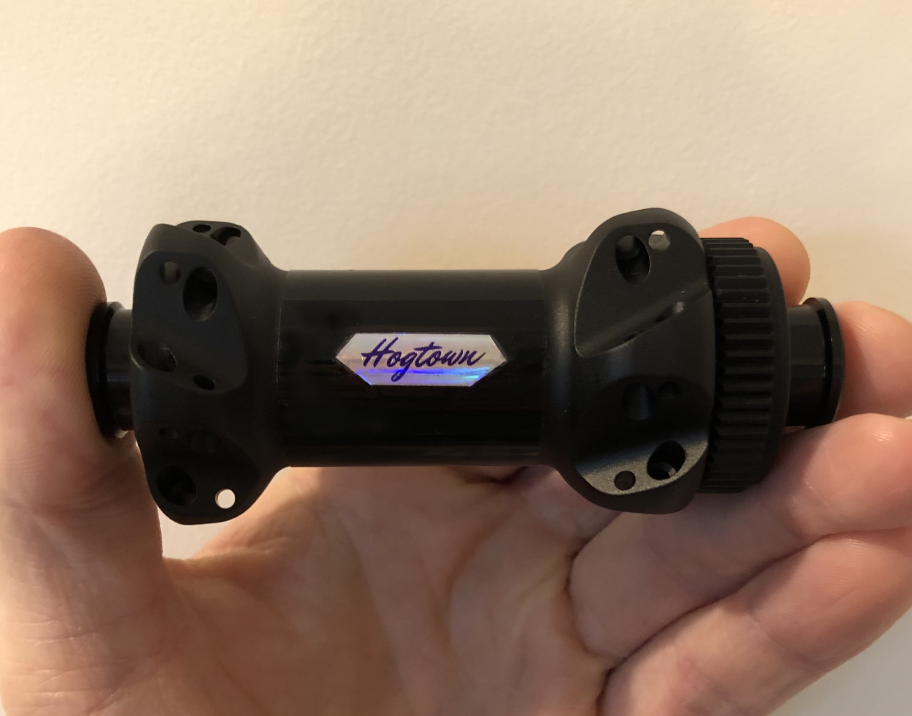

Hogtown Oos (made by NGEBUT [NGB]) Anodized Matte Black SP 100 x 12 mm CL Hub. Silver & Stealth version waterproof vinyl decals w 3M automotive-grade translucent protective film - this thermoformed film can be repeatedly washed and gently wiped without issue. Bearings have been upgraded with ABEC-7 hybrid ceramic - size 15267-2RS

Ultra-premium Pillar WING Elliptical 1420 (2.0-1.2 mm) Black Spokes; Silver Brass Nipples w (1) Blue Alloy Accent Nipple at valve location. Also available: DT Swiss Squorx-head Red Alloy Nipples OR Sapim Double-square Alloy Nipples in Gold, Green, or Dark Blue

Your choice of Muc-off Gen2 60 mm or 80 mm Anodized TR Valve w Tool Cap (numerous colourways available)

Premium Ashima 160 mm CL Rotor w Anodized Slate Deckas Lockring. Also available: Premium Shimano MT-800 Ice-tech 160 mm CL Aero Rotor (upcharge item)

Hutchinson Fusion 5 Storm Performance 11 700 x 28c (28 mm) Tubeless Rubber (127 TPI) (ROAD BUILDS) OR Panaracer Gravel King SK Colour Edition 700 x 38c (38 mm) Ginger Tubeless (GRAVEL BUILDS). Also available: Continental Grand Prix 5000 700 x 28c (28 mm) Black/Creme Tubeless (ROAD BUILDS; upcharge item)

Rim Comes Taped and TR-ready w (2.5) Ounces of Joe’s Super Sealant (CO2-compatible)

“DNA Mapping” Certificate with Full Build Metrics

Rear:

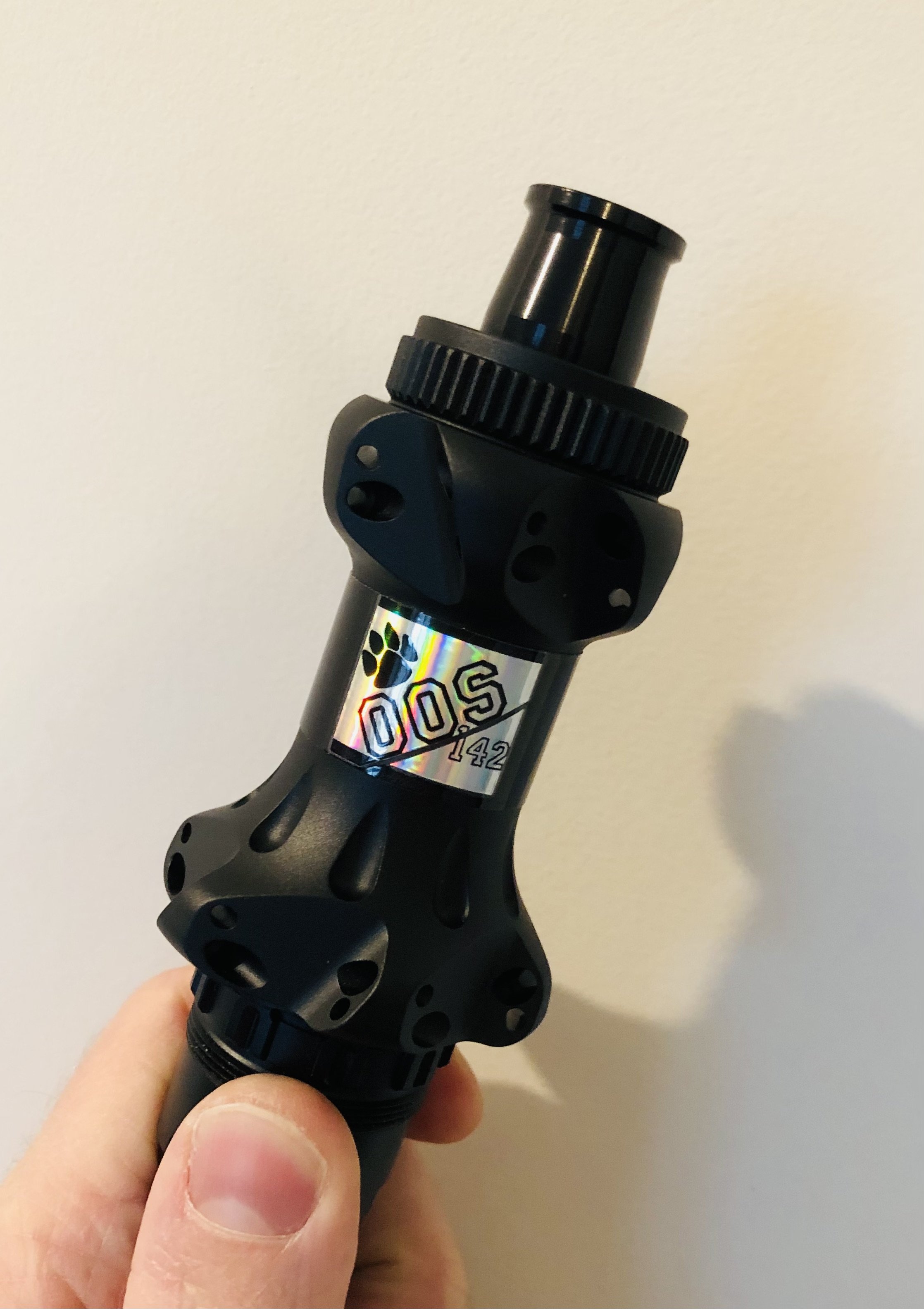

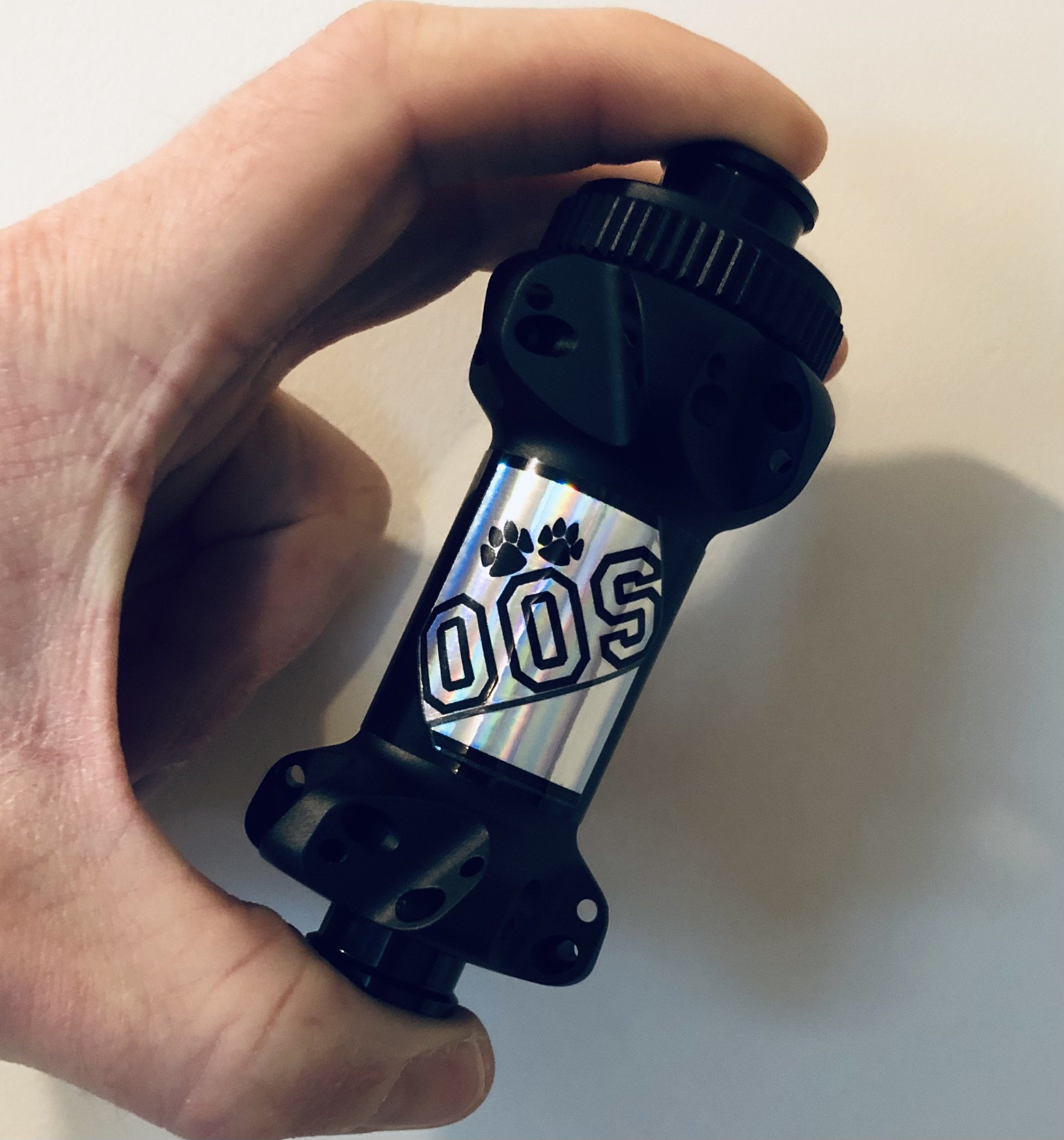

Hogtown Oos (made by NGEBUT [NGB]) Anodized Matte Black SP 142 x 12 mm w XDR Freehub Ratchet CL Hub. Freehub fits SRAM 11-12S Cassettes. Stock with 36T Ratchets (10-degree EA). All bearings have been upgraded: NDS shell bearing with Premium Black Bearing Steel - size 15267-2RS; DS shell bearing with genuine Tier-1 Japanese NSK DDU Steel (contact seals) - size 6902-2RS; and freehub bearings (2x) with Enduro LLB Steel - size 6802-2RS. Silver & Stealth version waterproof vinyl decals w 3M automotive-grade translucent protective film - this thermoformed film can be repeatedly washed and gently wiped without issue.

**Anodized black Shimano HG-Road Freehub, with Anti-bite Steel insert, available instead, at no extra charge**

**60T Ratchets (6-degree EA) available instead, for an additional charge**

Premium Pillar Aero 1423 (2.3-1.5 mm) Black Spokes; Silver Brass Nipples w (1) Blue Alloy Accent Nipple at valve location. Also available: DT Swiss Squorx-head Red Alloy Nipples OR Sapim Double-square Alloy Nipples in Gold, Green, or Dark Blue

Your choice of Muc-off Gen2 60 mm or 80 mm Anodized TR Valve (numerous colourways available)

Premium Ashima 160 mm CL Rotor w Anodized Slate Deckas Lockring. Also available: Premium Shimano MT-800 Ice-tech 160 mm CL Aero Rotor (upcharge item)

Rim Comes Taped and TR-ready w (2.5) Ounces of Joe’s Super Sealant (CO2-compatible)

“DNA Mapping” Certificate with Full Build Metrics

WARRANTIES: Supplied by Hogtown Spokes, exclusively, and extending for THREE years from date of customer purchase against manufacturing defect and normal workmanship. Additionally, Hogtown Spokes extends a SPECIAL 3-year Service Warranty covering free touch-up tensioning and internal hub cleaning.
