Front:

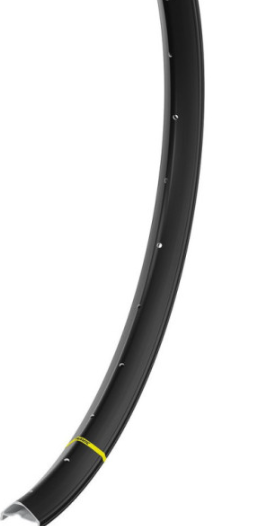

32-Hole Mavic E-XM 435 27.5” Rim; 35 mm internal width (fits tires 2.25-3”). Custom SLIK Graphics Premium Foil Blue Chrome Decals

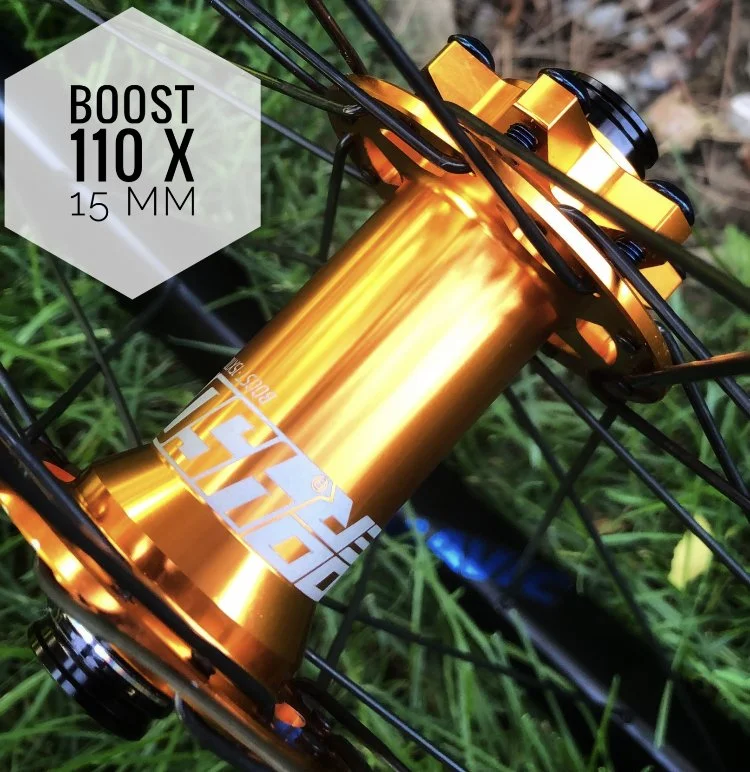

Anodized Golden Orange 2023+ Model Koozer XM450 Pro Boost 110 x 15 mm ISO Hub. Bearings have been upgraded with custom-made ABEC-5 Steel - size 18307-2RS. Custom oil-based metallic paintwork on DS flange only; sets off the “electric-ready” theme of this hubset

**Rockshox-compatible Torque Caps available, for an additional charge**

**Rockshox-compatible Anodized Gold Boost stealth axle available, for an additional charge (as well as being colour-matched, design is lighter and marginally stiffer than STD fluted axles)**

Premium Pillar Aero 1423 (2.3-1.5 mm) Black Spokes; DT Swiss Squorx-head Black Brass Nipples w (1) Squorx-head Silver Brass Nipple at valve location for accenting

Muc-off Gen2 Anodized Blue TR Valve w Tool Cap

Custom Blue Titanium Rotor Bolts included

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Eco Sealant

“DNA Mapping” Certificate with Full Build Metrics

Rear:

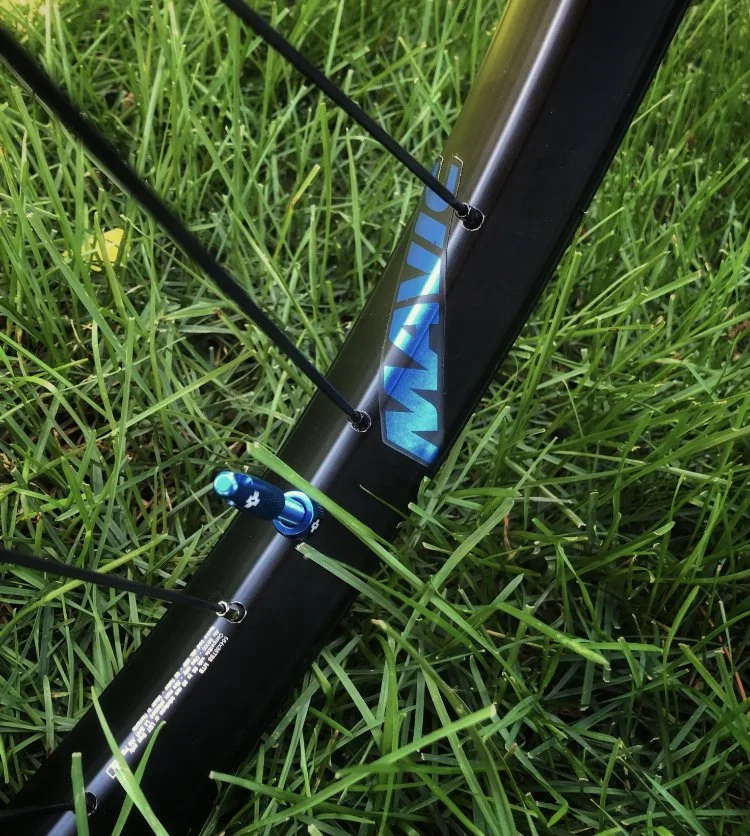

32-Hole Mavic E-XM 435 27.5” Rim; 35 mm internal width (fits tires 2.25-3”). Custom SLIK Graphics Premium Foil Blue Chrome Decals

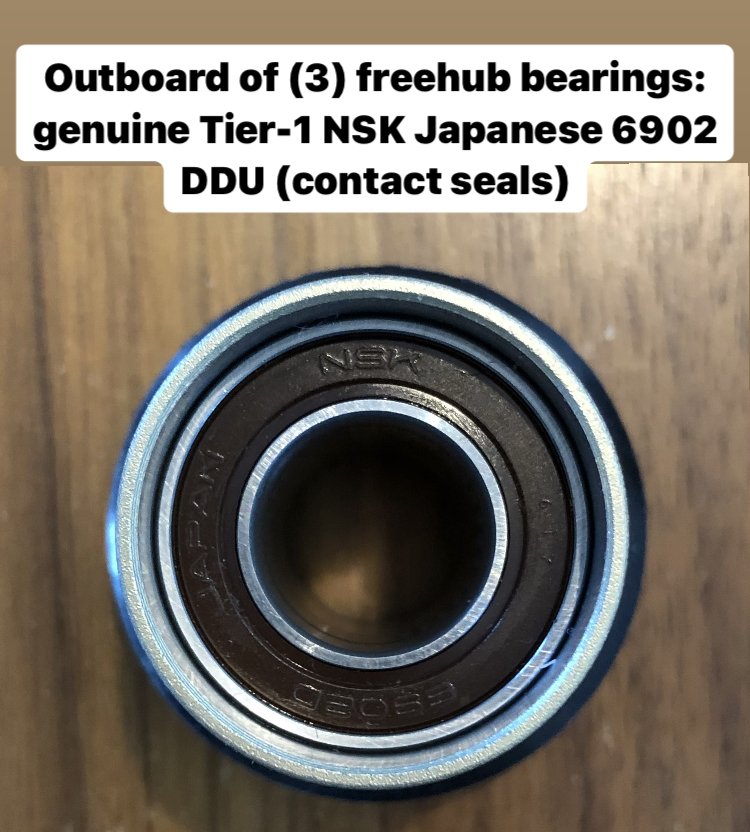

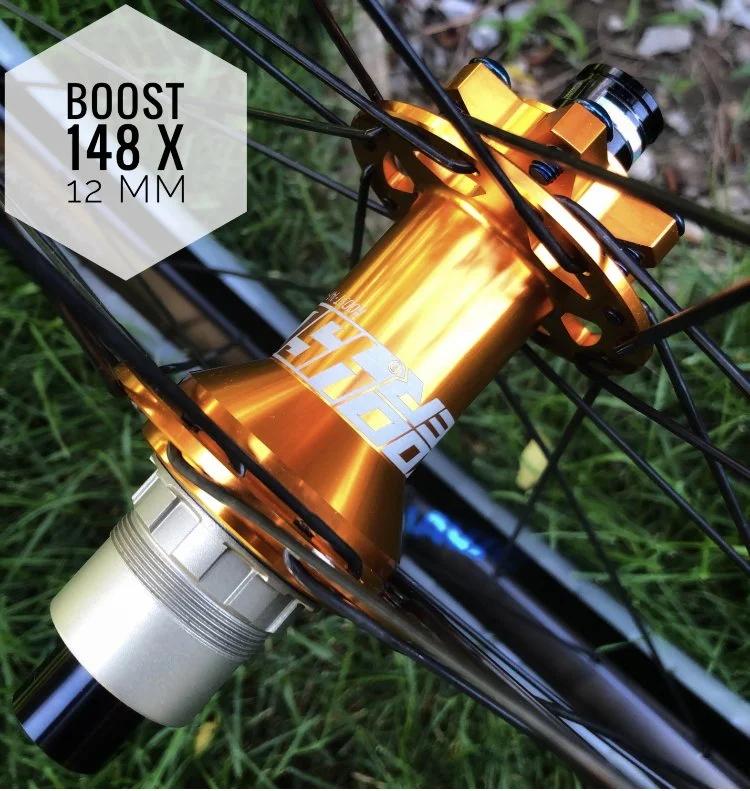

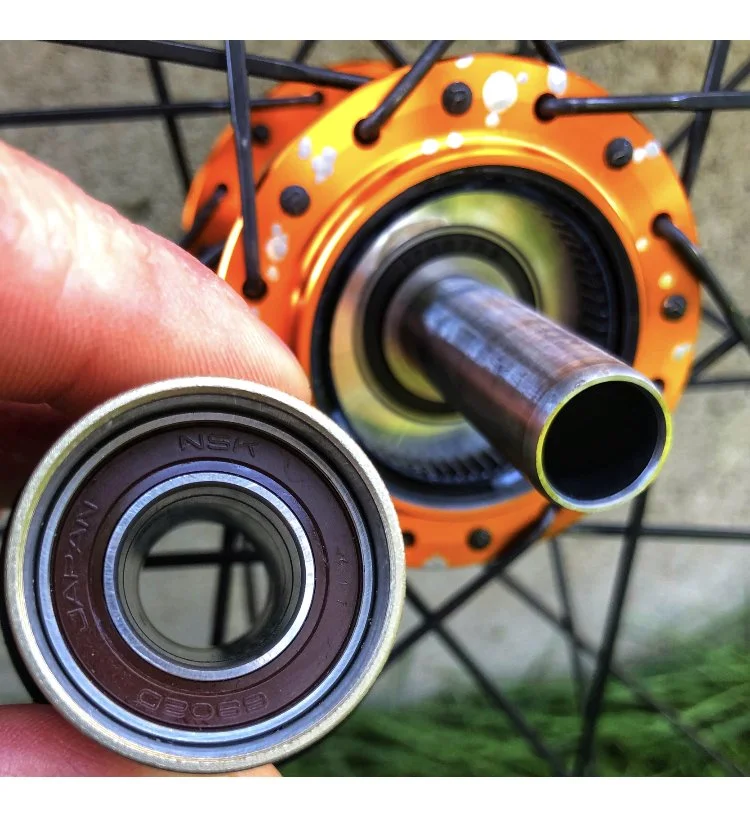

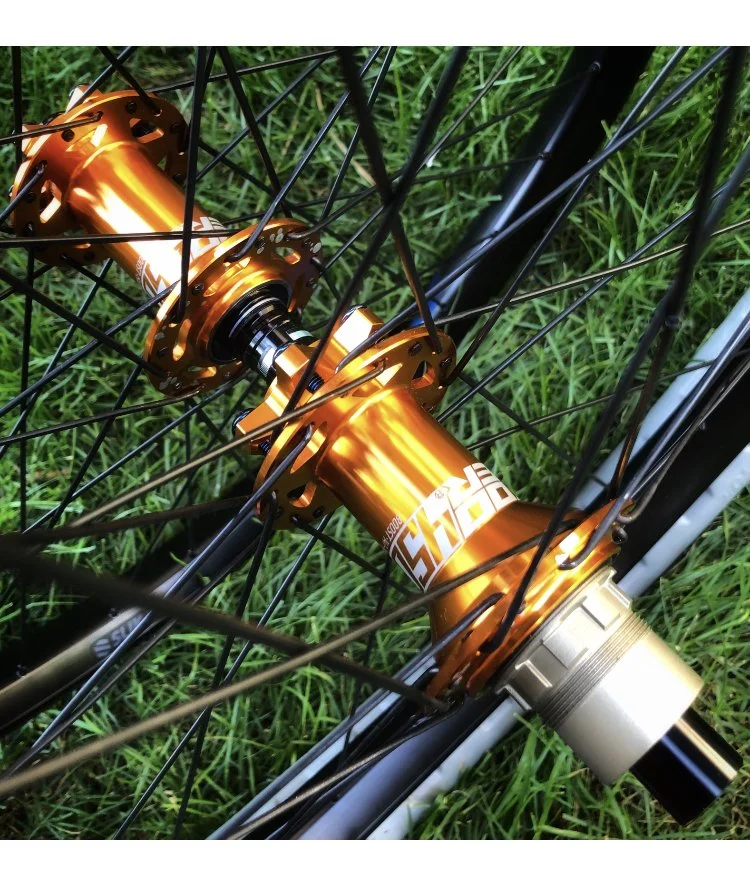

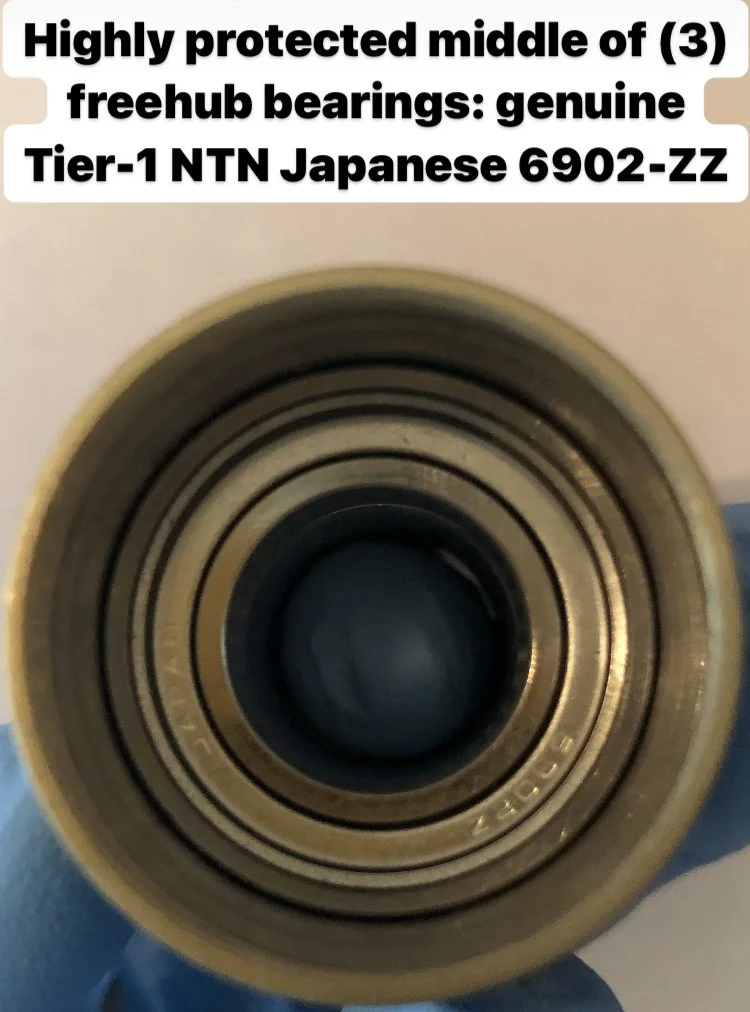

Anodized Golden Orange 2023+ Model Koozer XM450 Pro Boost 148 x 12 mm w XD Freehub ISO Hub. Freehub fits SRAM 11-12S Cassettes. Stepped, chromoly steel rear axle for greater stiffness and durability. E-bike-specific aftermarket freehub with hard anodizing generates 60 POE (6-degree EA) using a simultaneous 5-pawl design. Multi-toothed design of pawls (3 teeth per pawl) means that 15 teeth grab the drivering at all times, for increased durability including on e-bikes. Double-sealed rubber labyrinth protection for hub internals. All bearings have been upgraded: NDS hub-shell bearing with genuine Tier-1 Japanese NSK DDU Steel (contact seals) - size 6902-2RS; DS shell bearing with German-made ZEN Steel - size 17287-2RS; freehub bearings with Dynaroll Steel (inboard - size 6802-2RS), genuine Tier-1 Japanese NTN 2Z Steel (middle - size 6902-2RS) & genuine Tier-1 Japanese NSK DDU Steel (contact seals) (outboard - size 6902-2RS). Oversize, overbuilt bearing configuration results in extremely stiff, reliable hub tracking even under the higher loads generated by e-bikes. Custom oil-based metallic paintwork on DS flange only; sets off the “electric-ready” theme of this hubset

Premium Pillar Aero 1423 (2.3-1.5 mm) Black Spokes; DT Swiss Squorx-head Black Brass Nipples w (1) Squorx-head Silver Brass Nipple at valve location for accenting

Muc-off Gen2 Anodized Blue TR Valve

Custom Blue Titanium Rotor Bolts included

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Eco Sealant

“DNA Mapping” Certificate with Full Build Metrics

WARRANTIES: Supplied by Hogtown Spokes, exclusively, and extending for two years from date of customer purchase against manufacturing defect and normal workmanship. Additionally, Hogtown Spokes extends a 2-year Service Warranty covering free touch-up tensioning and internal hub cleaning.

OPTIONAL ADD-ON:

• CushCore 27.5 XC+ Rim Protection for rear rim - ADDS $105
