Front:

32-Hole Mavic E-XM 435 27.5” Rim; 35 mm internal width (fits tires 2.25-3”). Asymmetrical design. Custom SLIK Graphics Premium Foil Blue Chrome Vinyl Decals applied

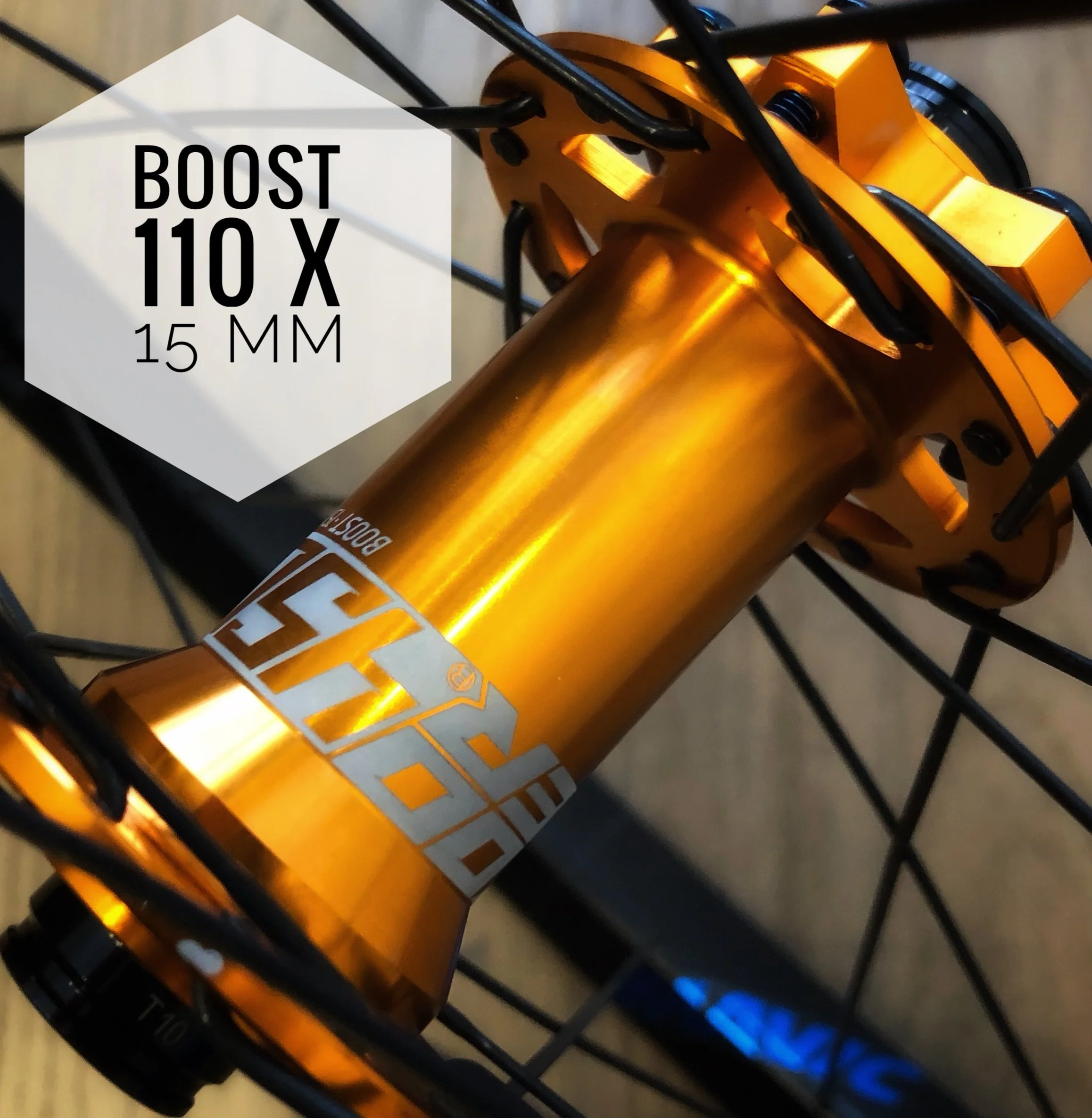

Anodized Orange Koozer XM450 Pro Boost 110 x 15 mm ISO Hub. Bearings are Premium S&S LU/LB Steel - size 18307-2RS. Custom oil-based metallic silver paintwork on DS flange only

Premium Pillar Aero 1423 (2.3-1.5 mm flats) Black Spokes; DT Swiss Squorx-head Black Brass Nipples w (1) Squorx-head Silver Brass Accent Nipple, at valve location

Muc-off Gen2 Anodized Blue TR Valve w Tool Cap

Custom Blue Ti M5 Rotor Bolts included

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Sealant

“DNA Mapping” Certificate with Full Build Metrics

Rear:

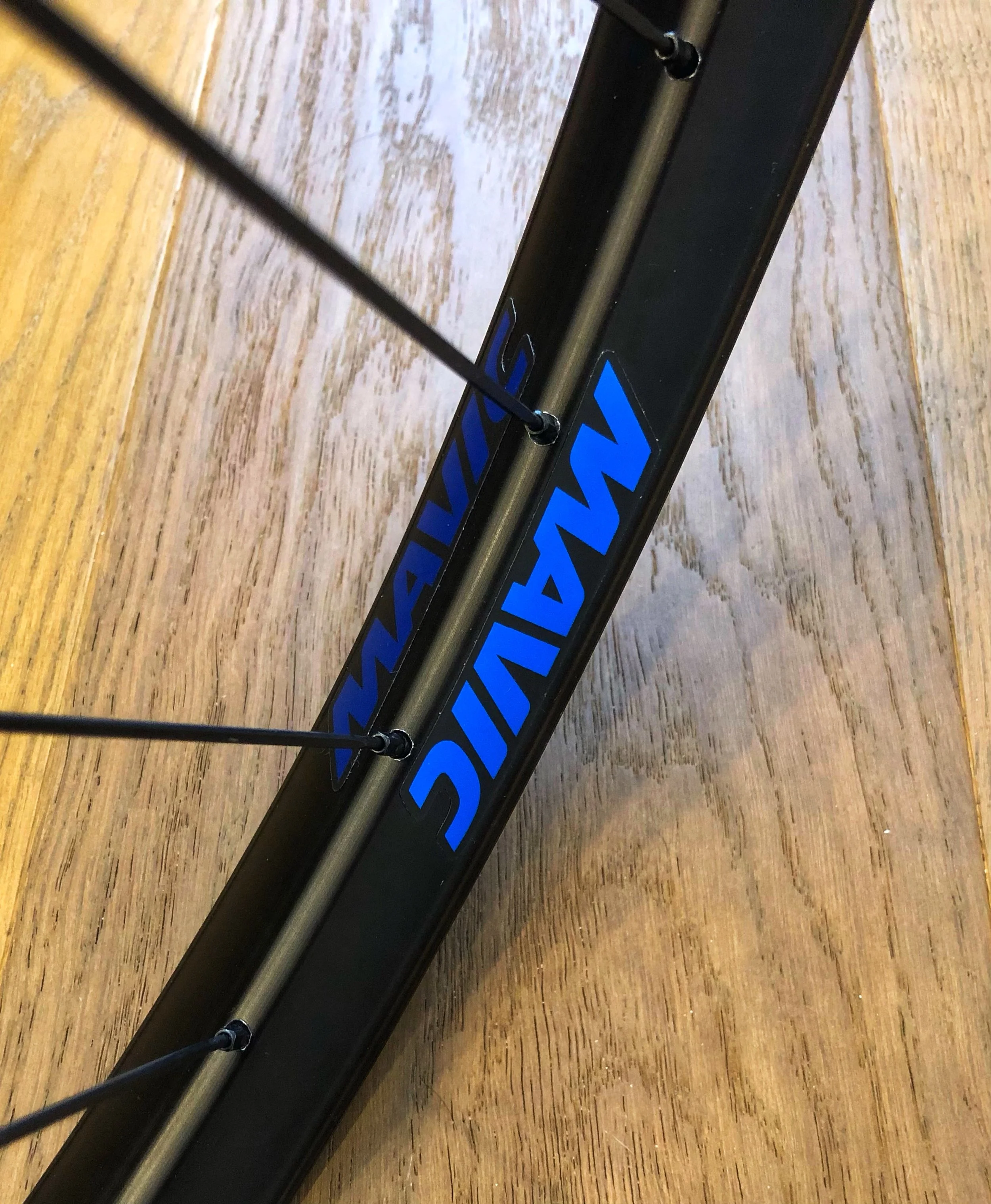

32-Hole Mavic E-XM 435 27.5” Rim; 35 mm internal width (fits tires 2.25-3”). Asymmetrical design. Custom SLIK Graphics Premium Foil Blue Chrome Vinyl Decals applied

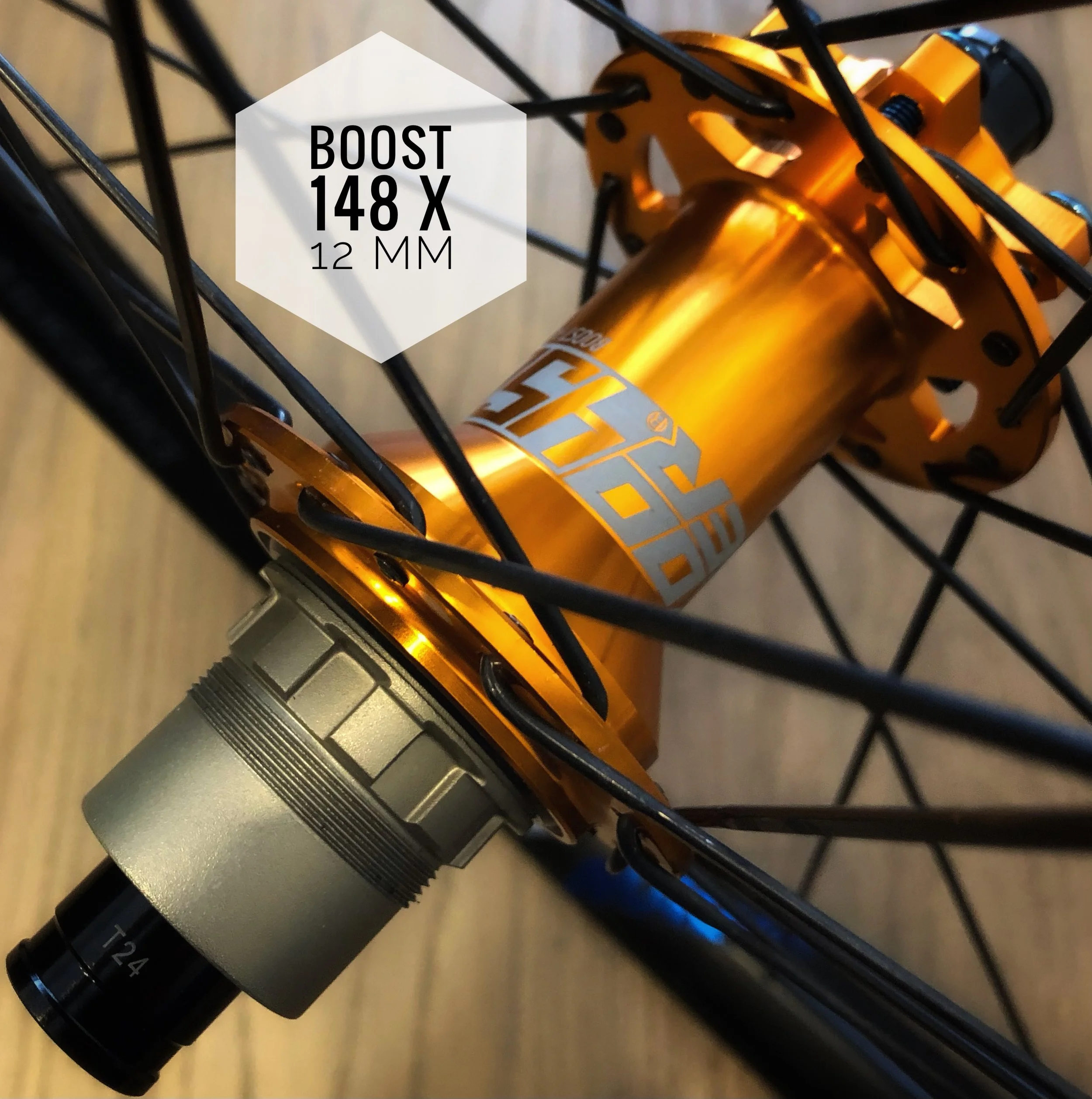

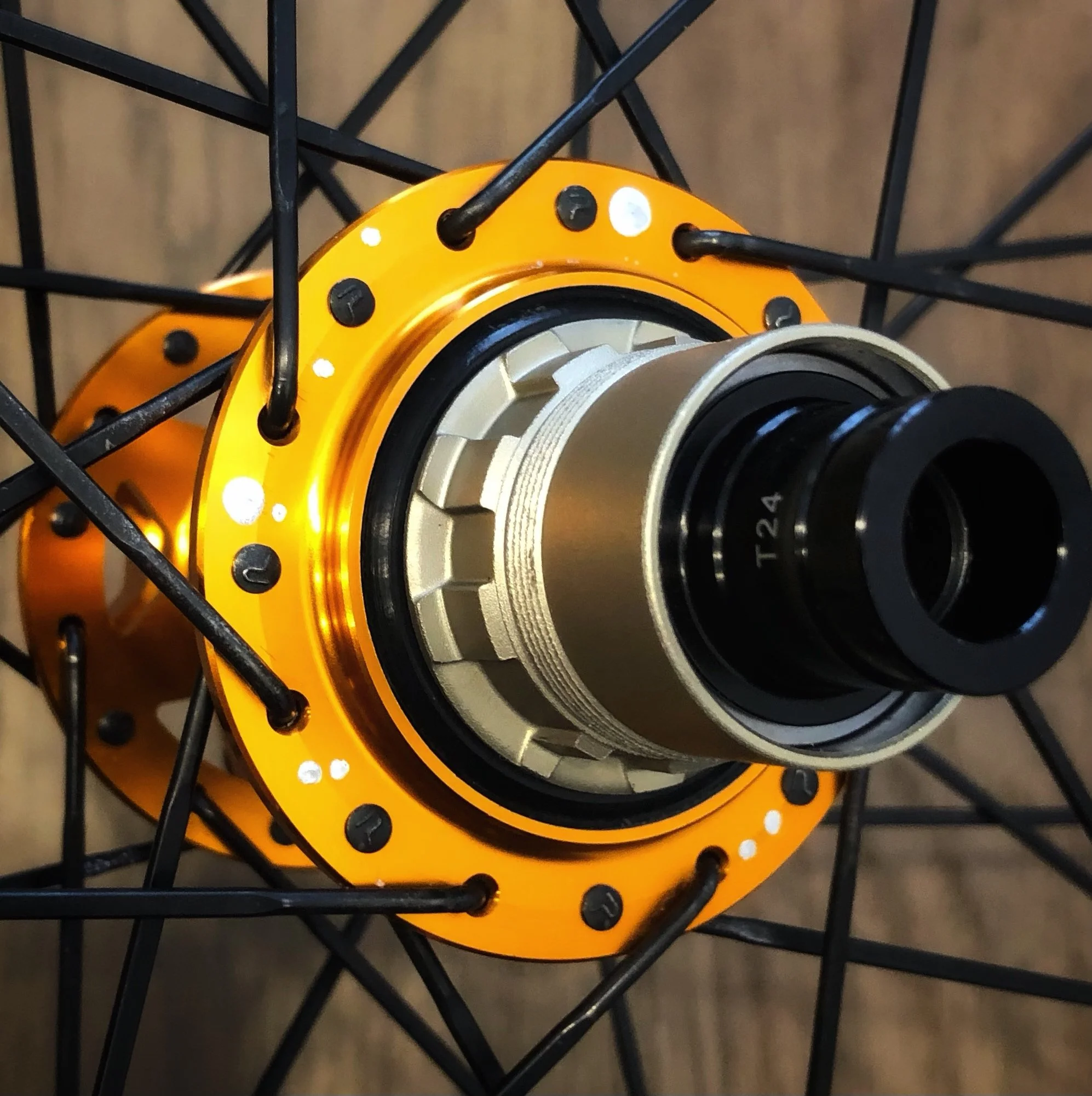

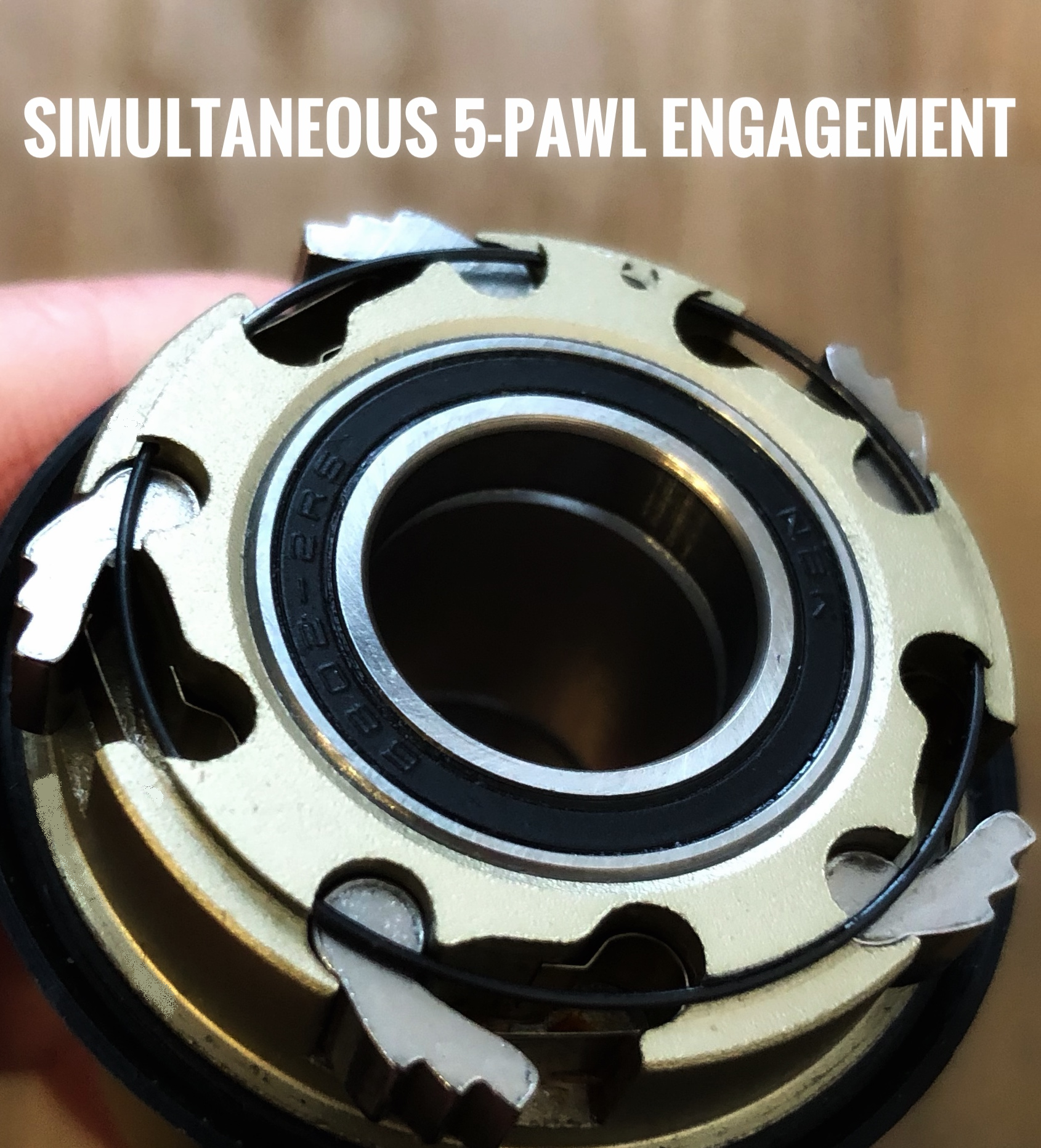

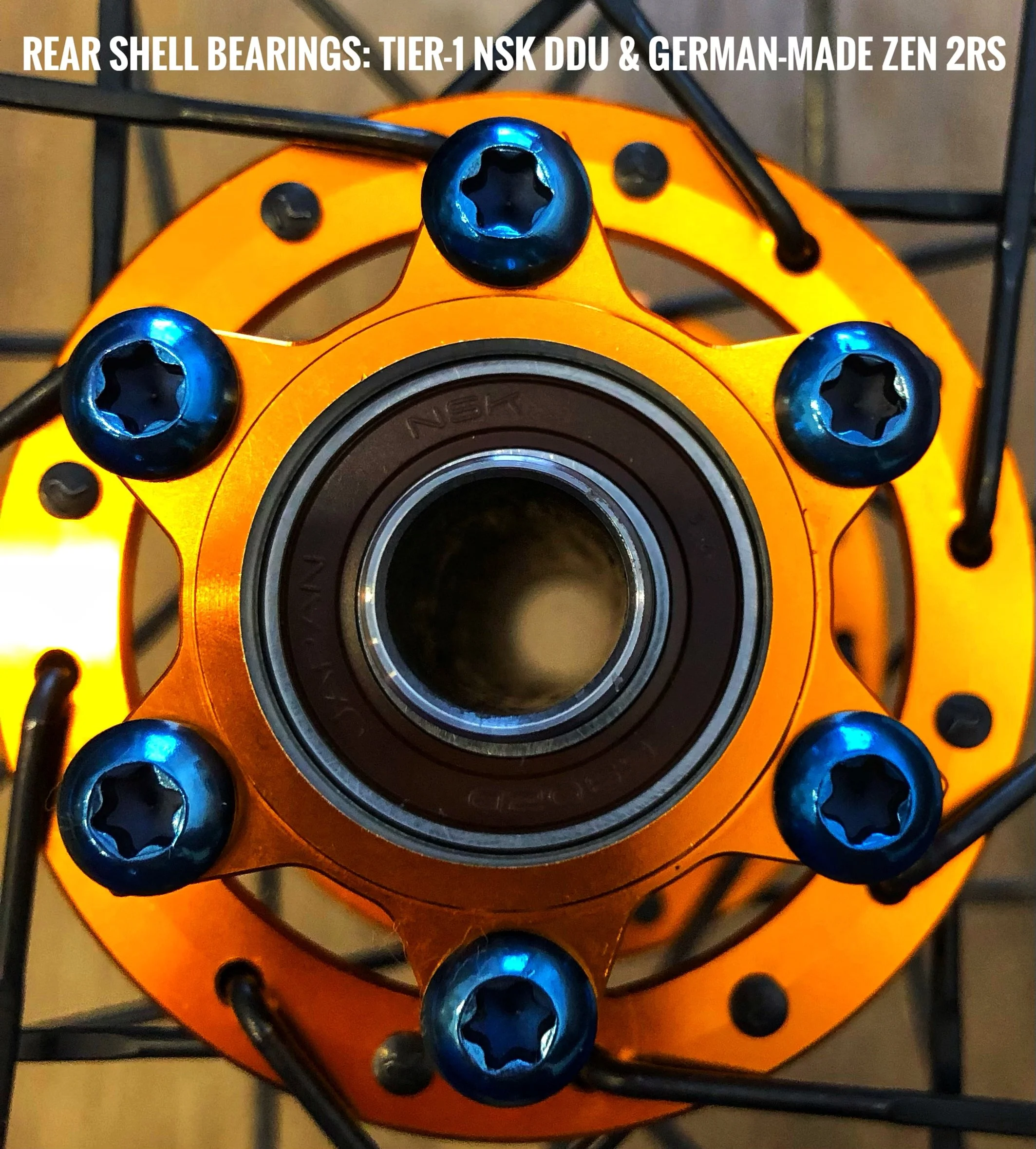

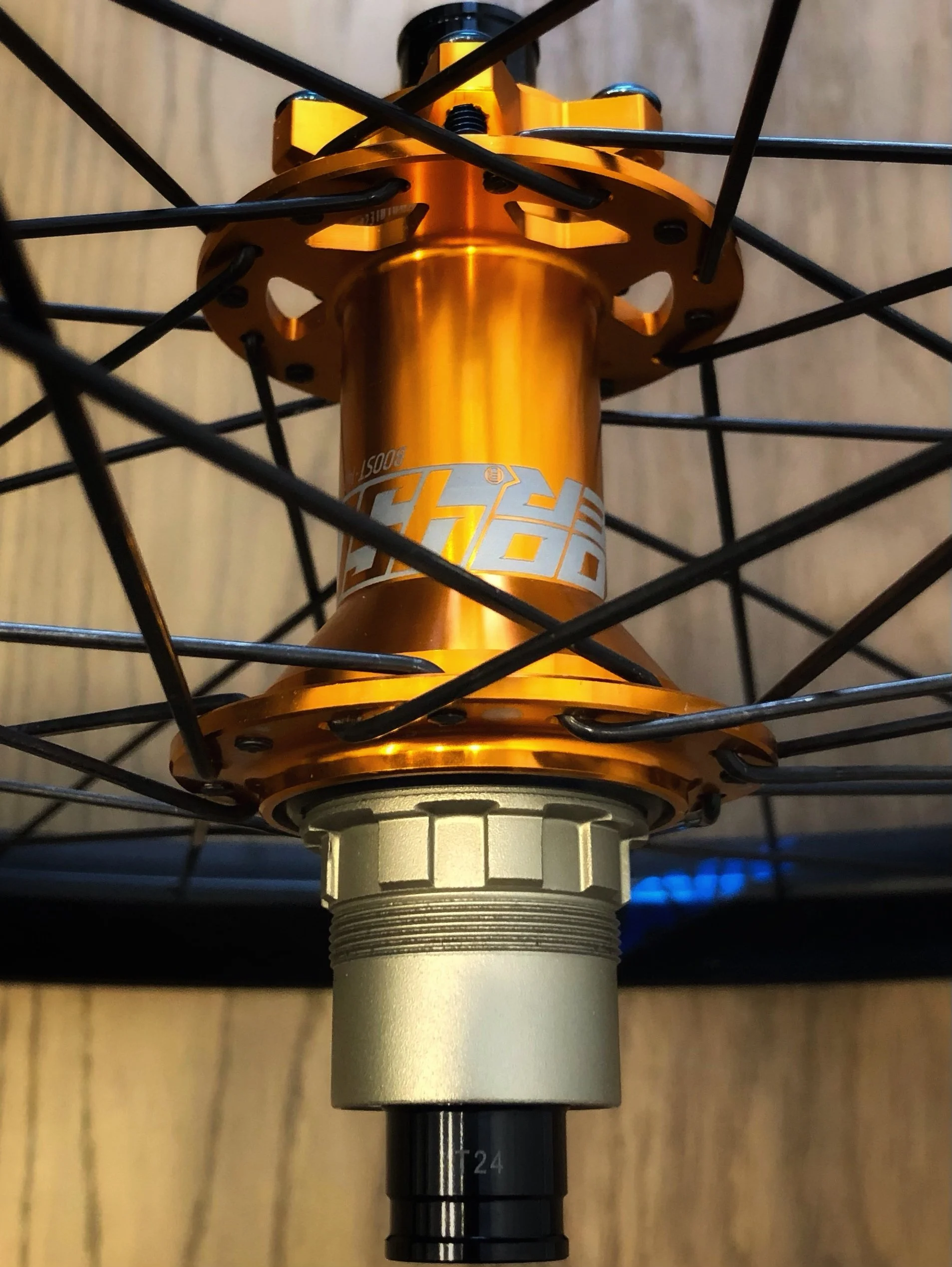

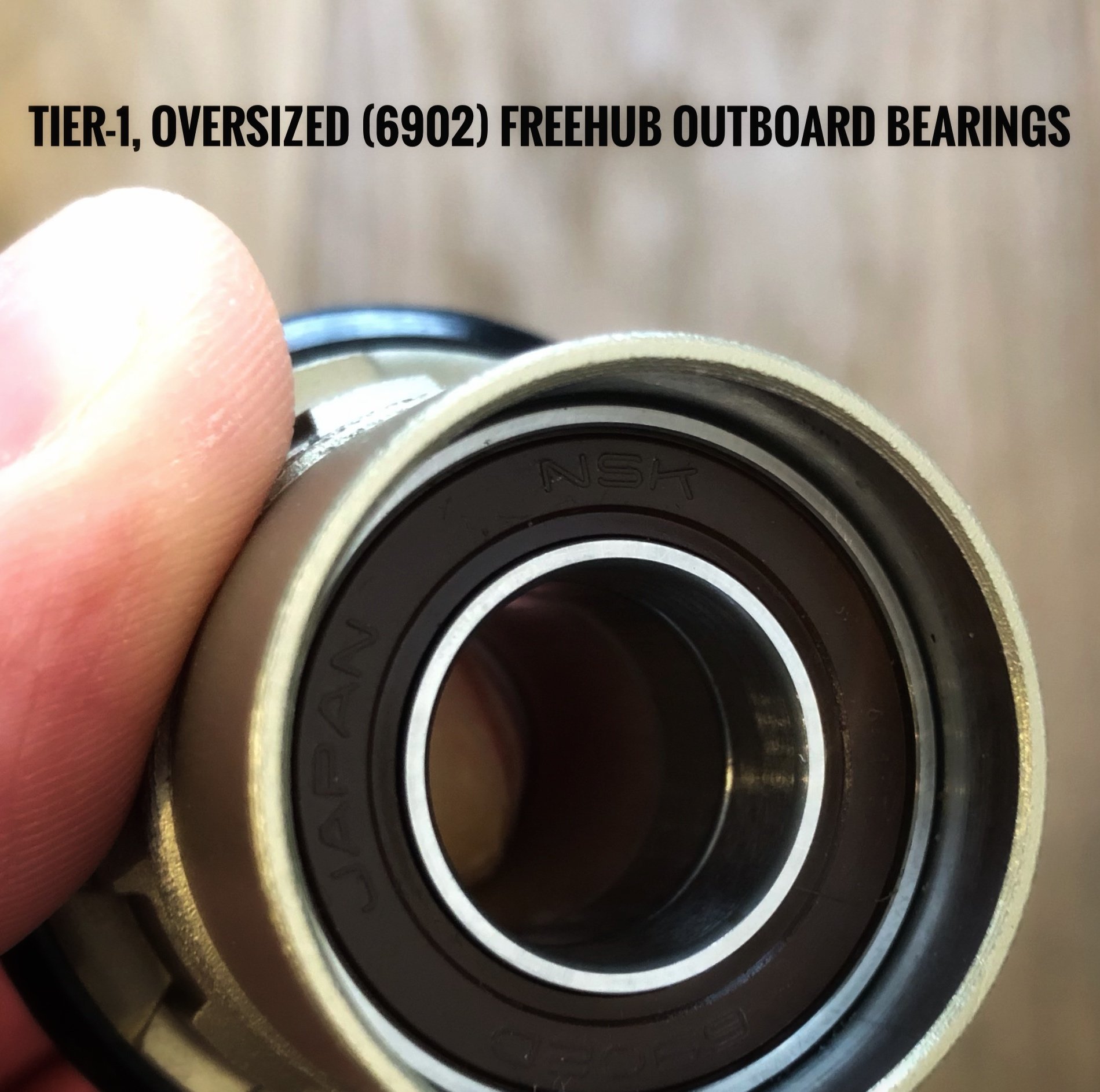

Anodized Orange Koozer XM450 Pro Boost 148 x 12 mm w XD Freehub ISO Hub. Custom, aftermarket freehub fits SRAM 11-12S Cassettes. Custom, aftermarket stepped chromoly-steel rear axle for greater stiffness and durability. Freehub features hard anodizing; aftermarket low-tension leaf springs; and generates 60 POE (6-degree EA) using a simultaneous 5-pawl design. Multi-toothed design of pawls (3 teeth per pawl) means that 15 teeth grab the drivering at all times, for increased durability. Custom, aftermarket double-rubber-sealed protection for hub internals. All bearings have been upgraded: shell bearings with genuine Tier-1 Japanese NSK DDU Steel (contact seals) (NDS) - size 6902-2RS & genuine German-made ZEN Steel (DS) - size 17287-2RS; and freehub bearings with Premium NBK Steel (inboard) - size 6802-2RS; genuine Tier-1 Japanese NTN Steel - size 6902-2Z (middle unit); and with genuine Tier-1 Japanese NSK DDU Steel (contact seals) (outboard) - size 6902-2RS. Oversize, overbuilt bearing configuration results in extremely stiff, reliable hub tracking even under higher loads. Custom oil-based metallic silver paintwork on DS flange only

Premium Pillar Aero 1423 (2.3-1.5 mm flats) Black Spokes; DT Swiss Squorx-head Black Brass Nipples w (1) Squorx-head Silver Brass Accent Nipple, at valve location

Muc-off Gen2 Anodized Blue TR Valve w Presta cap

Custom Blue Ti M5 Rotor Bolts included

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Sealant

“DNA Mapping” Certificate with Full Build Metrics

UPGRADE(S): Rockshox-compatible Anodized Orange Boost Stealth Front Axle (158/9/1.5 mm) may be added, for an additional $65.

WARRANTIES: Supplied by Hogtown Spokes, exclusively, and extending for two years from date of customer purchase against manufacturing defect and normal workmanship. Additionally, Hogtown Spokes extends a 2-year Service Warranty covering free touch-up tensioning and internal hub cleaning exclusively. Original buyer only.
