Front:

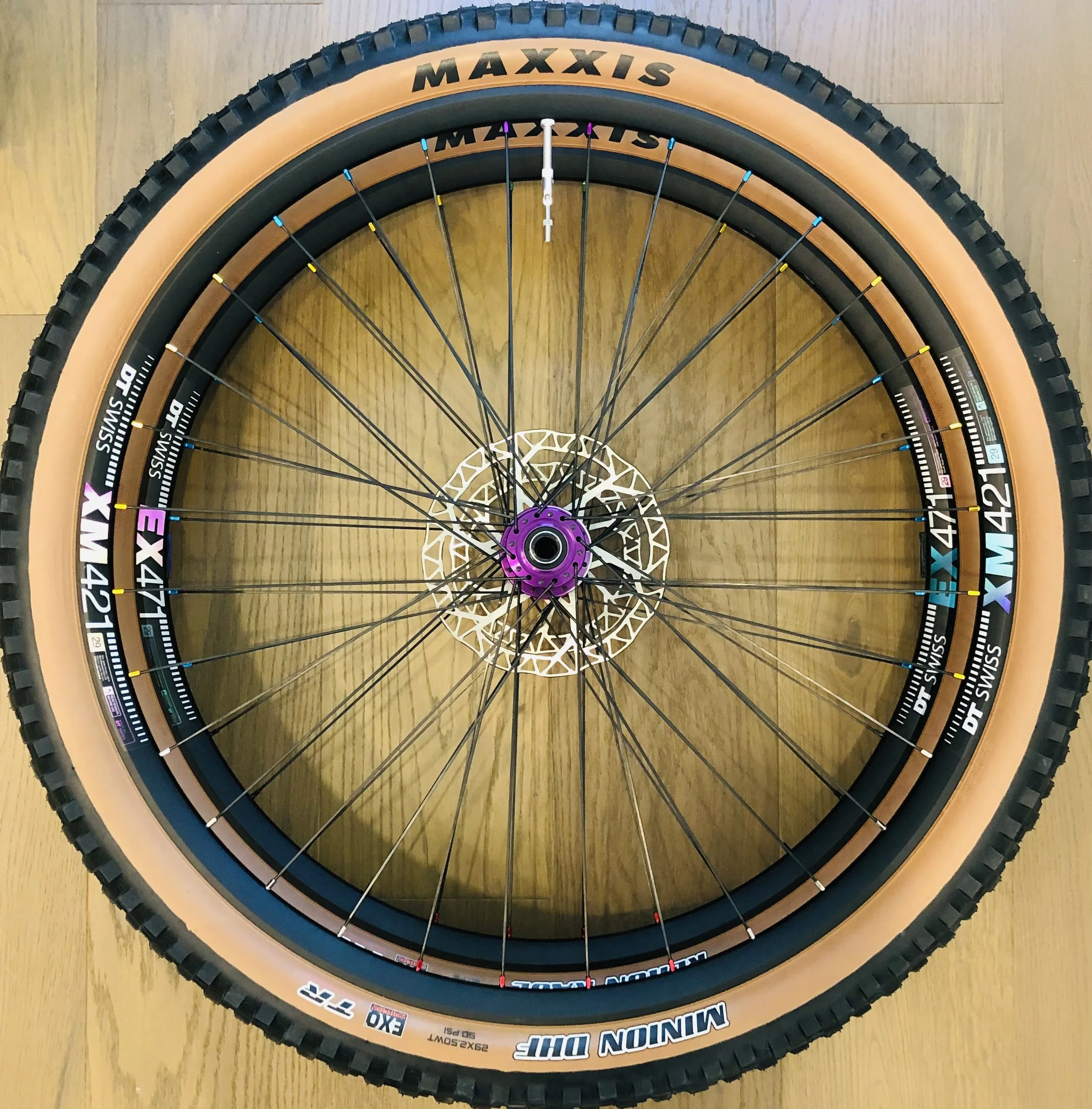

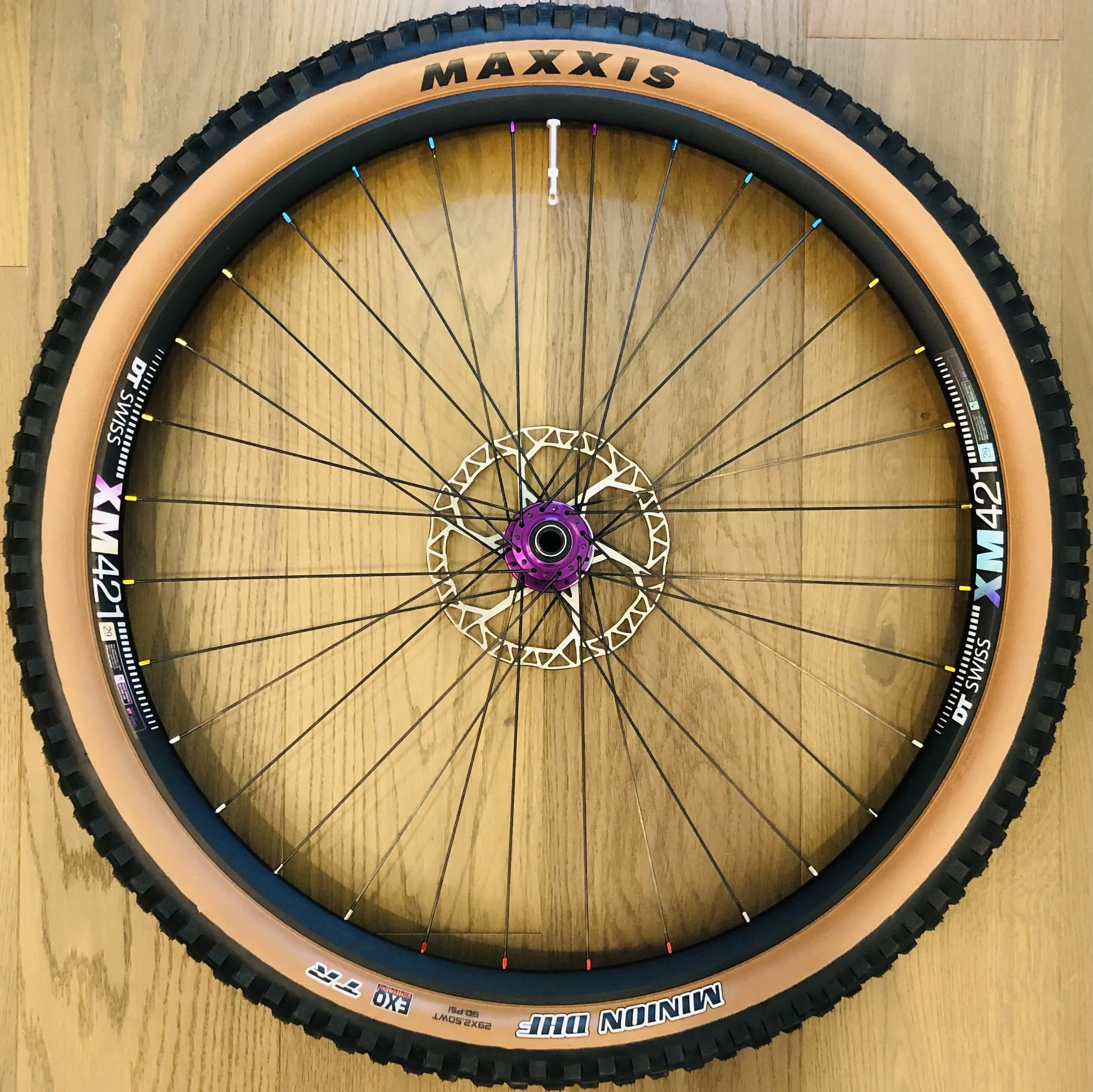

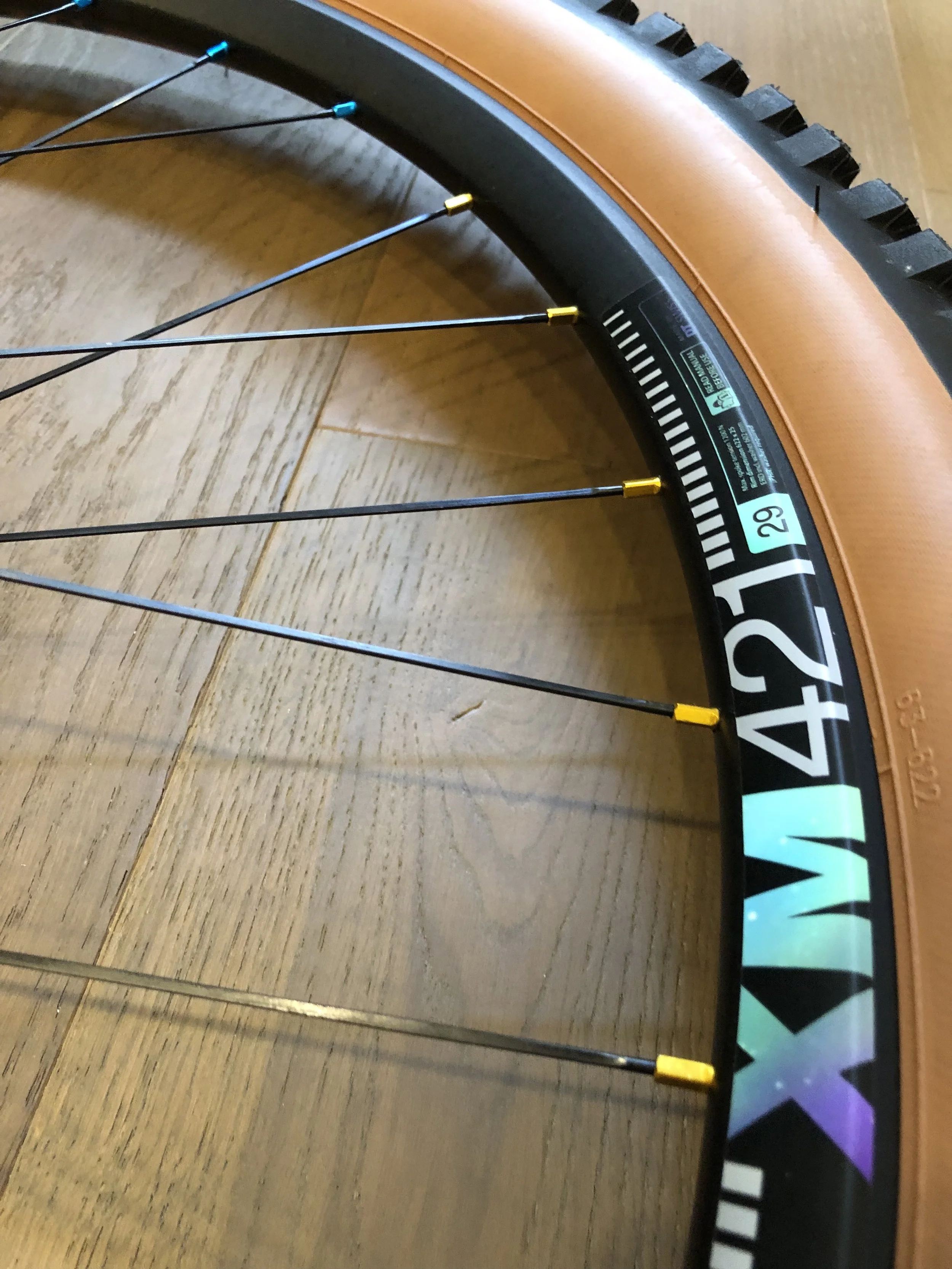

32-Hole DT Swiss XM421 29” Rim (ASTM 4 rating); 25 mm internal width. Custom SLIK Graphics Vinyl Rim Decals

Anodized Purple Boost 110 x 15 mm ISO Hub. Custom Hogtown Spokes “topography” multi-media graphics using Duplicolor Metalcast Automotive Paint and Metallic Vinyl. Graphics protected with 3M Pro premium automotive-grade PPF; furthermore, the hub has received multiple coats of Mother ceramic hydrophobic surface coating. Bearings have been upgraded with Premium Steel units with integral seals - size 17287-2RS

Ultra-premium Pillar X-TRA Aero 1420 (2.0-0.95 mm flats) Black Spokes; “colour-spectrum” Nipple Assortment using DSN (Double-square nipples)

Anodized Silver TR Valve w Knurled Cap

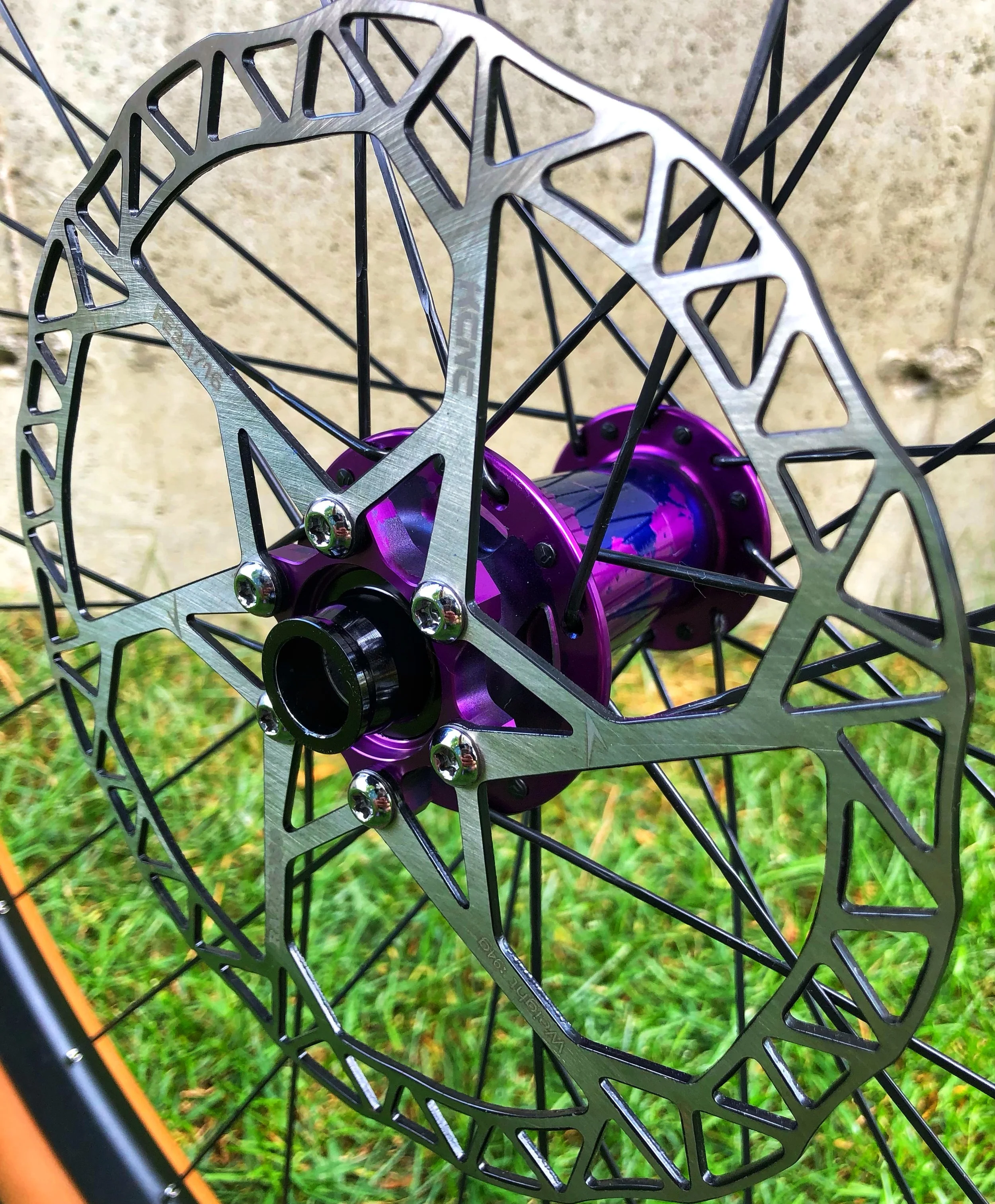

Premium KCNC Razor Stainless-steel 180 mm Rotor w Custom Ti M5 Bolts

Maxxis Minion DHF 2C WT 29 x 2.5” Tanwall Tubeless Rubber

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Sealant

“DNA Mapping” Certificate with Full Build Metrics

Rear:

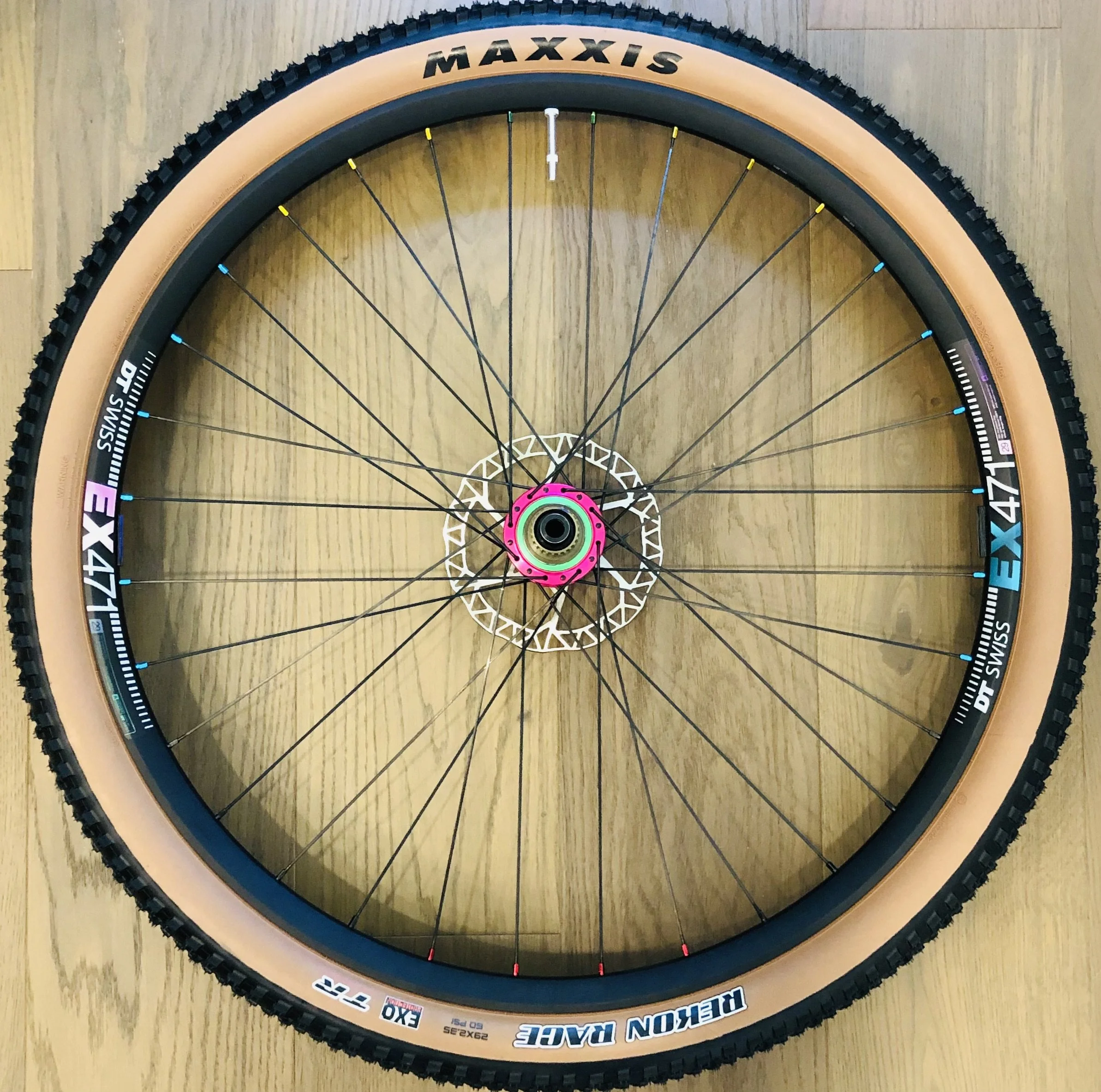

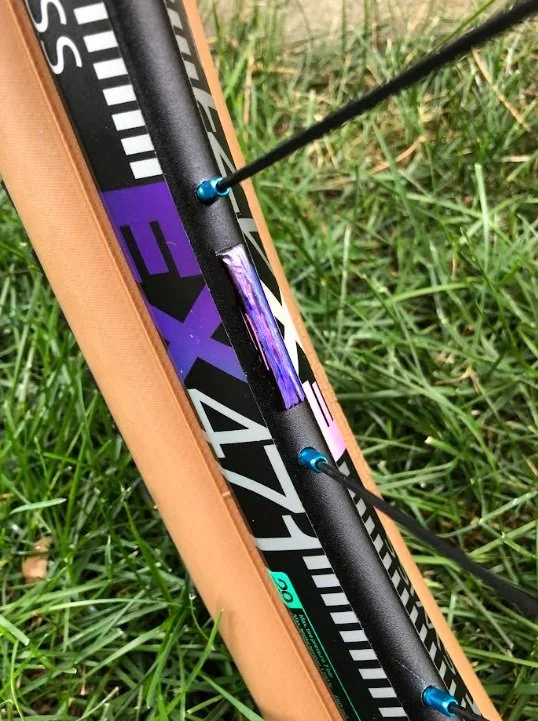

32-Hole DT Swiss EX471 29” Rim (ASTM 4 rating); 25 mm internal width. Custom SLIK Graphics Vinyl Rim Decals. Rim features custom-made painted copper counterbalancing weights (bonded on at 3 and 9 o’clock locations)

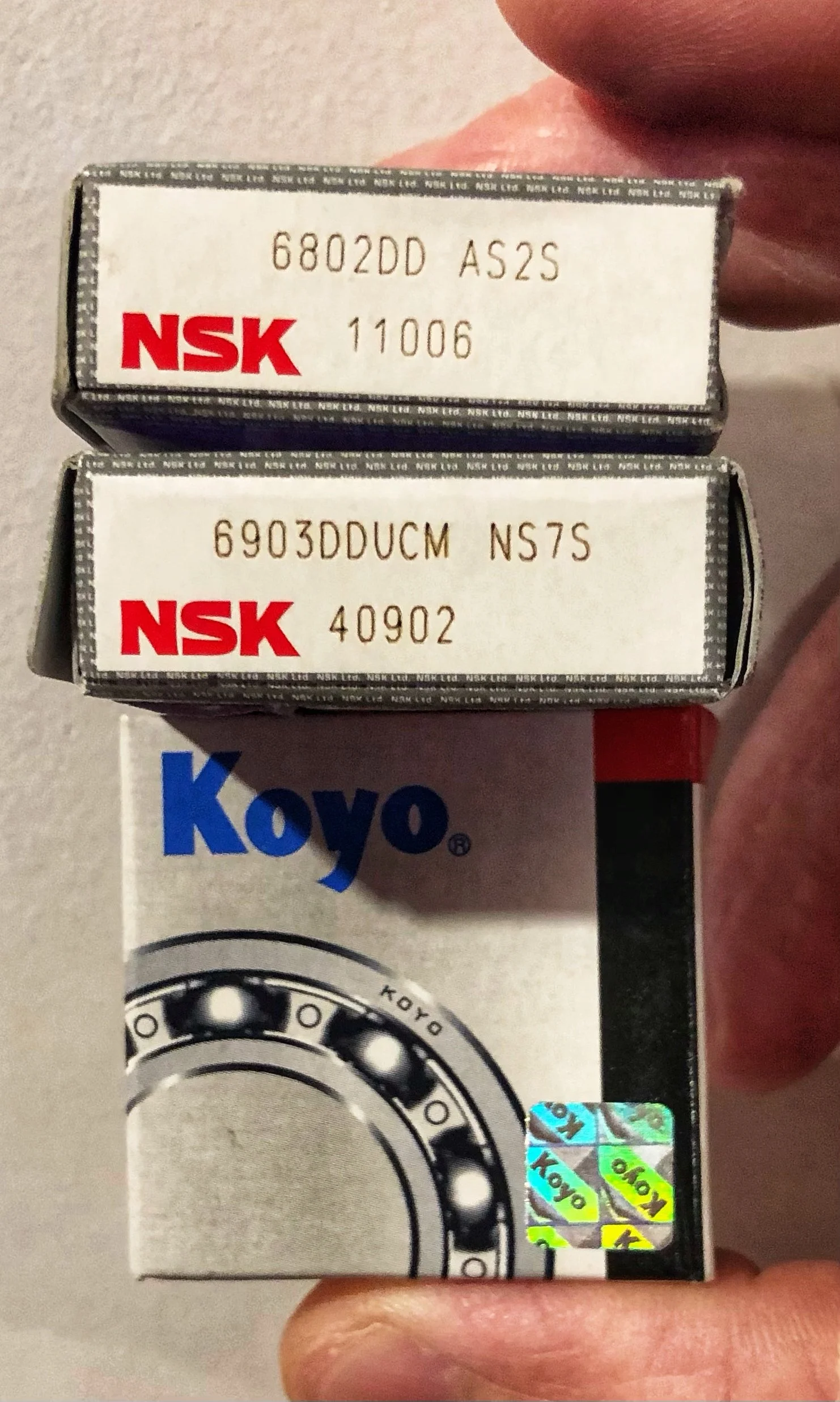

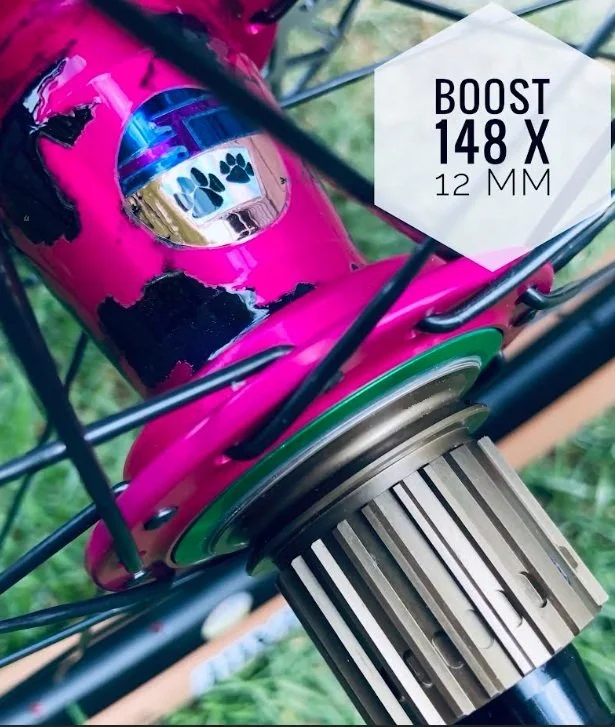

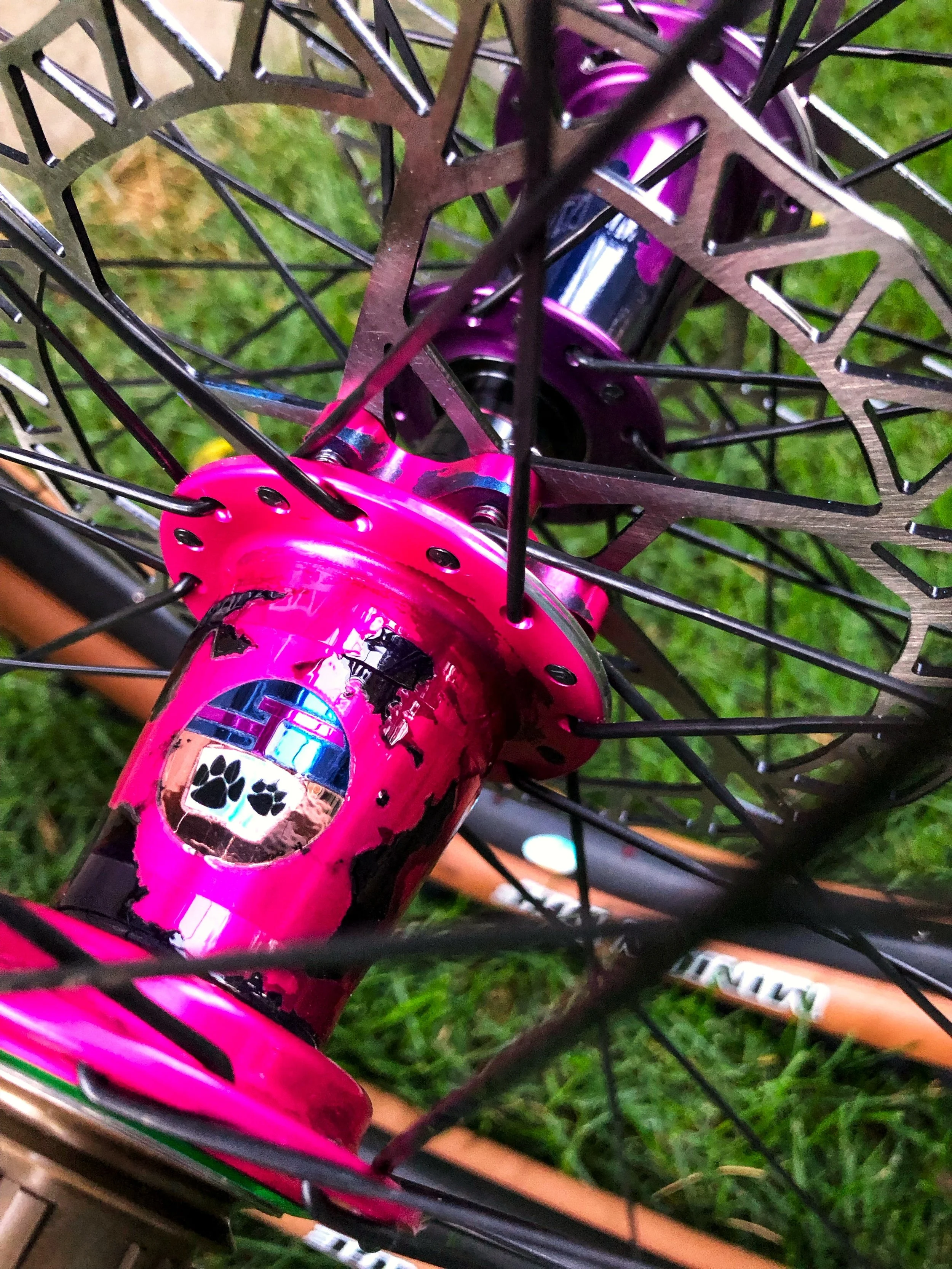

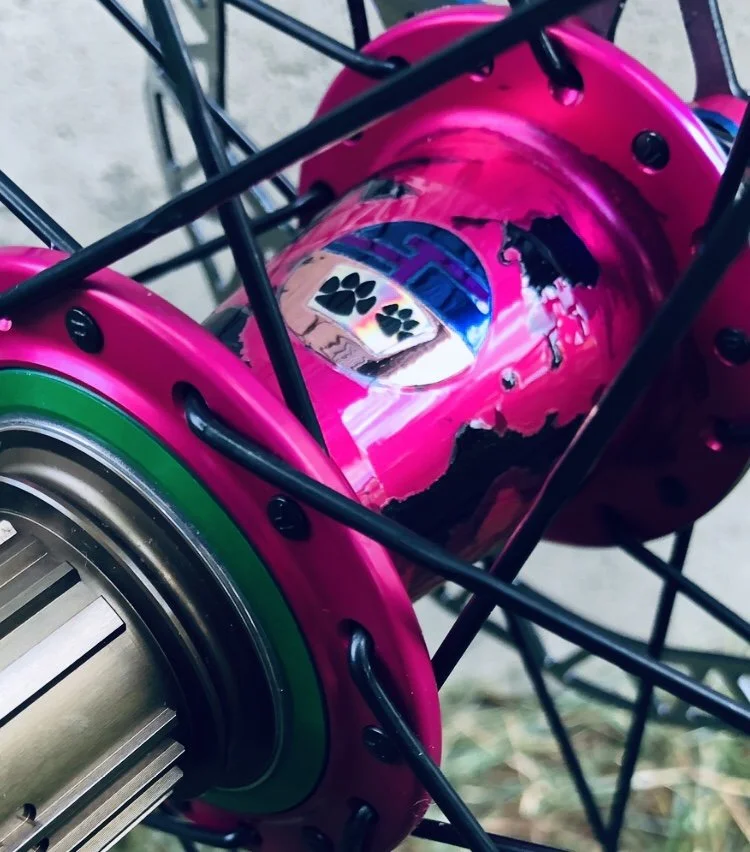

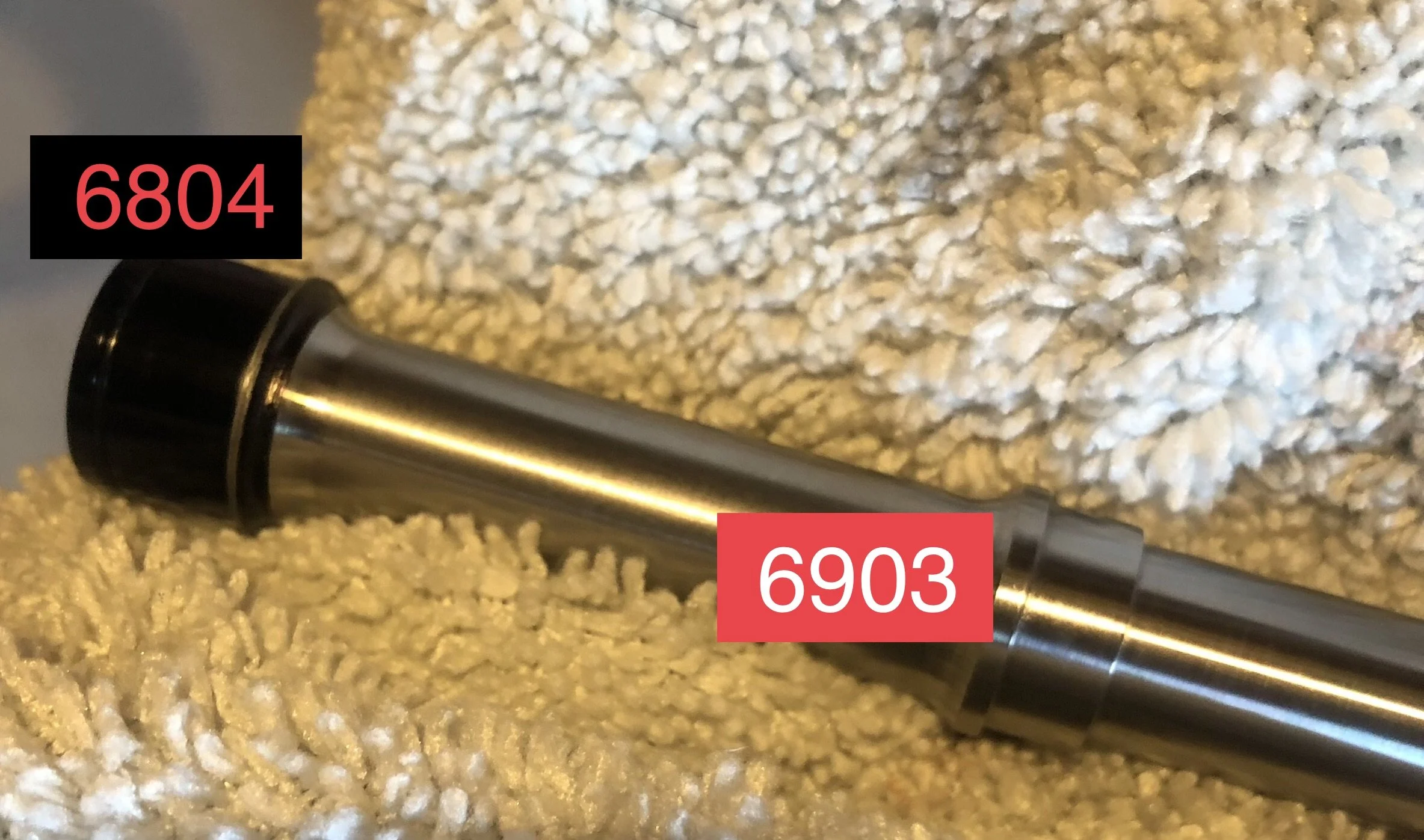

Anodized Pink (NGB hub platform) Boost 148 x 12 mm w MS Freehub ISO Hub. Custom Hogtown Spokes “topography” multi-media graphics using Duplicolor Metalcast Automotive Paint and Metallic Vinyl. Graphics protected with 3M Pro premium automotive-grade PPF; furthermore, the hub has received multiple coats of Mother ceramic hydrophobic surface coating. Freehub fits Shimano 12S Cassettes. Hub features a durable 6-pawl, phased design. The drive system generates a MINIMUM of 230 POE (1.6-degree EA) using 115 CNC’d steel teeth machined into the oversized drivering. Custom-made, steel-core, reinforced and stepped axle (17 mm to 15 mm DS) to increase durability of the drive mechanics and bearings, by reducing system flexion. Custom, high-end NBR and FKM o-rings incorporated throughout. Custom configuration of the freehub shield/seal to achieve optimal low-drag and sealing characteristics. All bearings have been upgraded: shell bearings with Koyo CM Steel (special tighter-tolerance low noise) (NDS) - size 6804-2RS & genuine Tier-1 Japanese NSK DDU CM Steel (contact seals; special tighter-tolerance low noise) (DS) - size 6903-2RS; and freehub bearings with Custom S&S Steel (inboard) - size 15268-2RS; and genuine Tier-1 Japanese NSK DDU Steel (outboard) - size 6802-2RS

Ultra-premium Pillar X-TRA Aero 1420 (2.0-0.95 mm flats) Black Spokes; “colour-spectrum” Nipple Assortment using DSN (Double-square nipples)

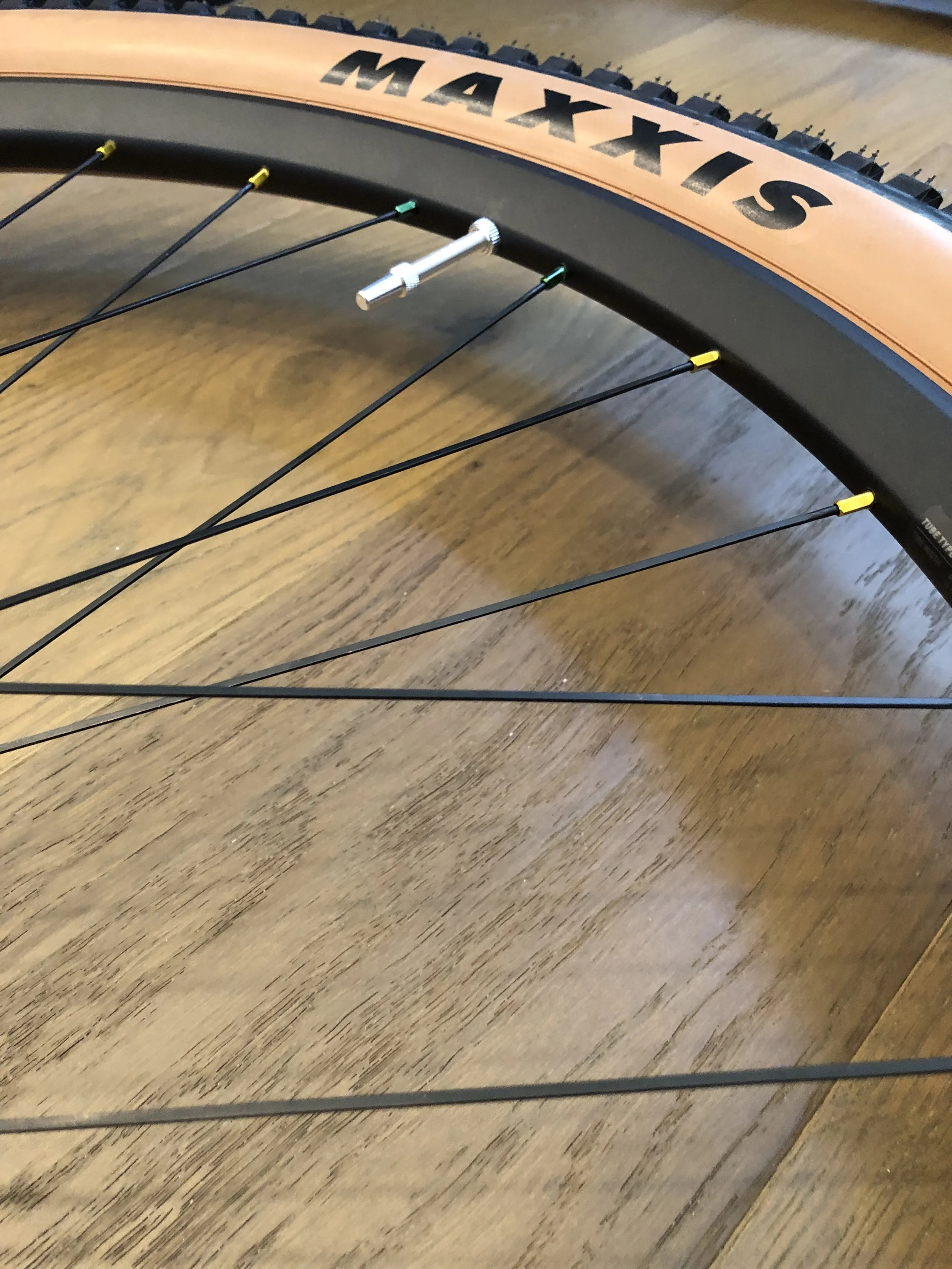

Anodized Silver TR Valve w Tool Cap

Premium KCNC Razor Stainless-steel 160 mm Rotor w Custom Ti M5 Bolts

Maxxis Rekon Race 2C 29 x 2.35” Tanwall Tubeless Rubber

Rim Comes Taped and TR-ready w (3) Ounces of Joe’s Sealant

“DNA Mapping” Certificate with Full Build Metrics

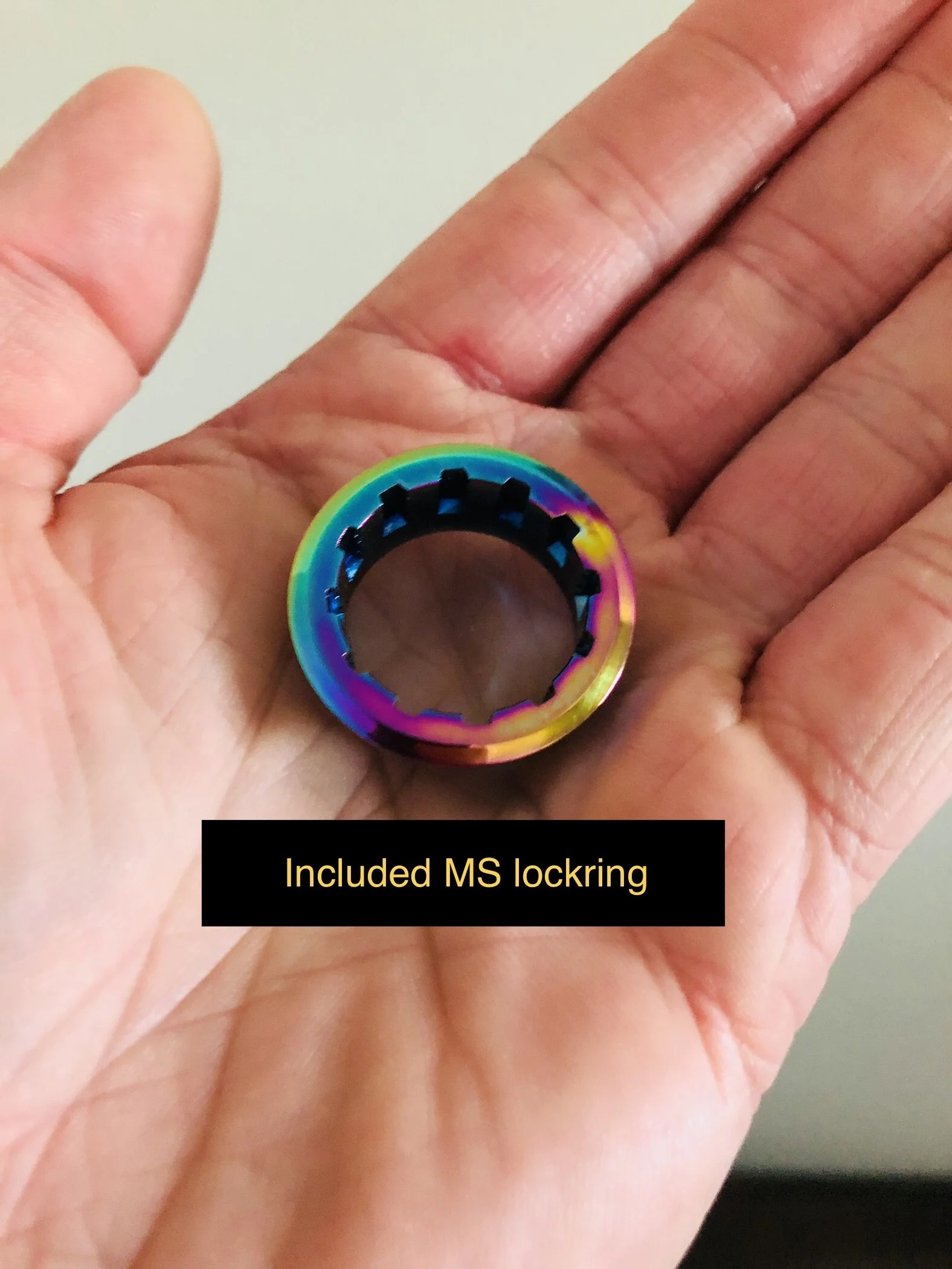

ALSO INCLUDES: Custom “Oil Slick” Shimano MS 10t lockring

WARRANTIES: Supplied by Hogtown Spokes, exclusively, and extending for two years from date of customer purchase against manufacturing defect and normal workmanship. Additionally, Hogtown Spokes extends a 2-year Service Warranty covering free touch-up tensioning and internal hub cleaning. **NOTE that the hub graphics must be cared for per Hogtown’s official written instructions; this is a special warranty condition of sale. Further special condition: These wheels are only warrantied for XC usage (minor trail chatter, no heavy rock gardens, drop-downs 12” or less, and no jumping). All warranties become nil and void if we believe for any reason that the wheels have been ridden beyond these described XC conditions.
